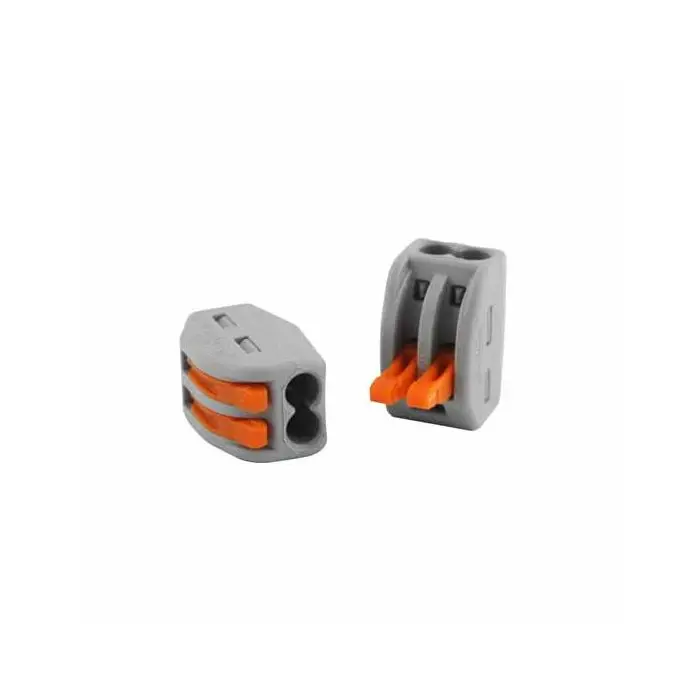

222 Series 2 Pole Connectors Terminal Block CAGE CLAMP 10pcs

Name: 222 Series 2 Pole Connectors Terminal Block CAGE CLAMP 10pcs
SKU: LT-MCCL02
Price: 0.23 EUR
Availability: OutOfStock

Out of stock

SKU: LT-MCCL02

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

The compact splicing connector for all conductor types: By using the 222 Series splicing connectors, you can connectsolid conductors with a cross section of 0.08 to 4 mm² and fine-stranded and stranded conductors with cross sections from 0.08 to 2.5 mm². Without using any tools!

Wiring is very easy: Strip 9 - 10 mm inches from thedesired conductor, open the clamping unit via the integratedlever, and insert the conductor. In addition to standard applications in building installations, these connectors canalso be fixed in position for use with mounting carriers, e.g. in distribution boxes.

In practical use, this connector can be used for intercomwiring, lighting fixtures, sunblinds, awnings, door and gatecontrols, inter phones, pumps, loudspeakers and many other applications ? , without tools!

Strong points

Stranded / solid wires
Wide range of wire sizes
Combination of different wire sizes and types in one connector
Small space consumption
Built-in test point
Protection against electrical shock, touch safe
Low installed cost and safe operation
Maintenance-free connection
A reusable connector

Data sheet

Technical data

Content	10 pcs.
Stripping length	9 - 10 mm
Category	Connection terminal
Cross section max. flexible	4 mm²
Rated voltage	400 V / AC
Number of poles	2
Cross section min. rigid	0:08 mm²
Cross section max. rigid	2.5 mm²
Cross section min. flexible	0:08 mm²
Rated current	32 A
Code Article producer	222-412
Link	A spring
Type	222-412
Color	Grey
