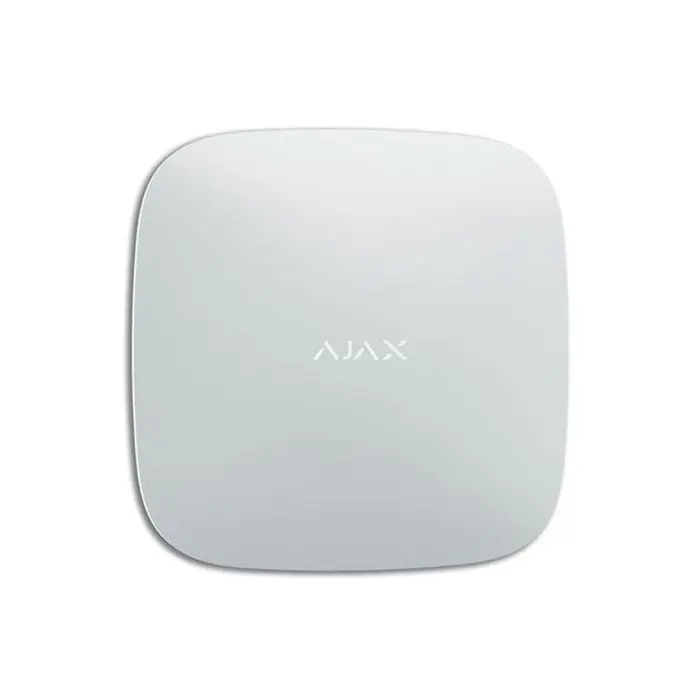

AJAX AJ-HUBPLUS-W AJHUBP-W Wireless Jeweller 868MHz control panel plus with WiFi/3G Dual-Sim/Ethernet connectivity white color

Name: AJAX AJ-HUBPLUS-W AJHUBP-W Wireless Jeweller 868MHz control panel plus with WiFi/3G Dual-Sim/Ethernet connectivity white color
SKU: 38247
Price: 207 EUR
Availability: OutOfStock

Out of stock

SKU: 38247

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

Hub Plus
Second-generation intelligent control panel with four communication channels, a new powerful processor, tripled RAM capacity and doubled flash memory capacity. The Hub Plus monitors the operation of all Ajax detectors and instantly alerts the owner and the security company. Uses Wi-Fi, Ethernet, WCDMA and GSM to send alarms to the Central Monitoring Station and the system’s owner. Sends a notification in case of electrical power loss and operates for up to 16 hours from battery backup. Checks the functionality of detectors at least every 12 seconds.

Protects large areas for home, apartament, office and shop.
The Hub Plus is designed to protect large facilities with a great number of rooms and people. New powerful processor and increased memory capacity have expanded the capabilities of the control panel: up to 150 detectors and 50 cameras can be connected to the hub and you can add 99 users and create 25 groups for room security management.

Uses all possible alarm transmission methods
The Hub Plus is the absolute leader in field in the number of communication channels: the control panel can be connected to the Internet via Wi-Fi, Ethernet, WCDMA, and GSM. Taken together, these functions ensure ultra-stable connection and instant alarm sending to the owner’s smartphone and the Central Monitoring Station. Alarms via calls, SMS and push notifications. Synchronized operation of all communication channels. Direct connection with central monitoring stations.

Increases stability by 4 times
The Hub Plus is equipped with a GSM module with two SIM-card slots that support 2G and 3G networks. Now you can use SIM-cards of two different communications providers without any risk of communications failures. The Hub instantly switches between 2G and 3G networks. If one SIM card does not respond, the second one is activated automatically.

Improved reliability
The Hub Plus makes it possible to use redundant Internet connection by connecting the central unit to networks of two independent communications providers: the main — via Ethernet, and the backup — via Wi-Fi. If connection of one provider fails, the hub will stay connected and continue monitoring the situation at the site.

Safe home and office automation
Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system; program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustainable anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost.

Simplifies installation and set up
The Hub Plus has a Wi-Fi module now, so it is not necessary to lay a cable for connection to the router. The control panel is ready to operate straight out the box. It is set using the mobile application, and the detectors are connected with just one click. The device can be mounted in just a few minutes using the SmartBracket mount.

Data sheet

Devices	up to 150
Groups	up to 25
Users	up to 99
Video surveillance	Up to 50 cameras or DVRs
Rooms	up to 50
Scenarios	up to 64Learn more
Connected ReX	up to 5
Power supply	110 – 240 V AC, 50 / 60 Hz
Accumulator unit	Li-Ion 2 A⋅h (up to 16 hours of autonomous operation in case of inactive Ethernet and Wi-Fi connection)
Energy consumption from the grid	10 W
Tamper protection	Yes
Frequency band	868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale
Effective radiated power	8.20 dBm / 6.60 mW (limit 25 mW)
Modulation of the radio signal	GFSK
Radio signal range	Up to 2,000 m (any obstacles absent)
Communication channels	WiFi 2.4 GHz (802.11 b/g/n), Ethernet, 2 slots Micro-SIM, networks 2G (GSM900/DCS1800), 3G (WCDMA 900/2100, B8/B1)
Installation	Indoors
Operating temperature range	From -10°С to +40°С
Operating humidity	Up to 75%
Overall dimensions	163 × 163 × 36 mm
Weight	350 g
Service life	10 years
