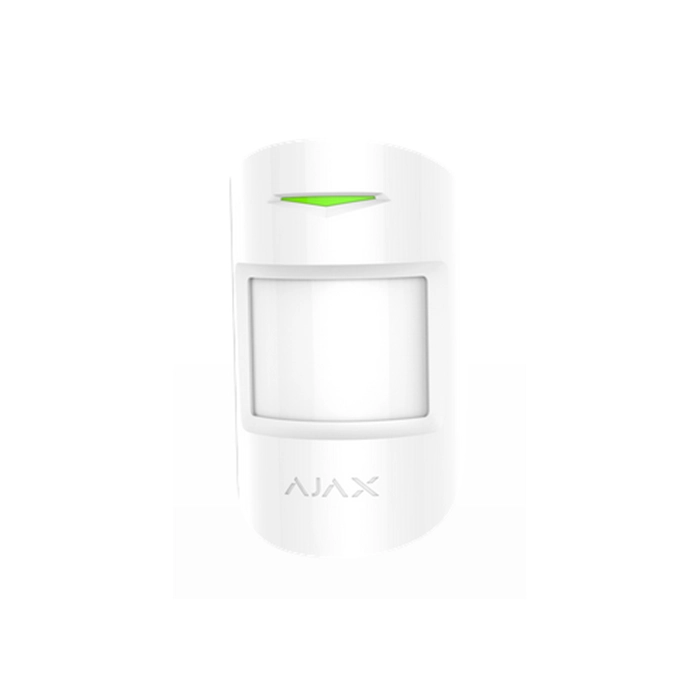

AJAX AJMP MotionProtect White Wireless PIR wireless volumetric detector with pet immunity

Name: AJAX AJMP MotionProtect White Wireless PIR wireless volumetric detector with pet immunity
SKU: 38193
Price: 41.5 EUR
Availability: InStock

In stock

SKU: 38193

qty: 264

Description

MotionProtect
Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. Accurately detects motion in heat conditions, even at a temperature of +40°С. Ignores cats and dogs with weight of up to 20 kg and height up to 50 cm

Principle of operation
The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms.

Features
The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.

Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Data sheet

Sensitive element	PIR sensor
Motion detection distance	Up to 12 m
Motion detector viewing angles (H/V)	88,5° / 80°
Time for motion detection	From 0.3 to 2 m/s
Pet immunity	Yes, height up to 50 cm, weight up to 20 kgWhy motion detectors react to animals and how to avoid it >
Tamper protection	Yes
Frequency band	868.0 – 868.6 MHz or 868.7 – 869.2 MHz, depending on the sales region
Compatibility	Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Maximum RF output power	Up to 20 mW
Modulation of the radio signal	GFSK
Radio signal range	Up to 1700 m (any obstacles absent)
Power supply	1 battery CR123A, 3 V
Battery life	Up to 5 years
Installation method	Indoors
Operating temperature range	From -10°С to +40°С
Operating humidity	Up to 75%
Overall dimensions	110 × 65 × 50 mm
Weight	86 g
Service life	10 years
Certification	Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-2-2, EN 50131-5-3

More Information

SKU Padre	38193.09.WH1
Ean	4823114015328
Shipping	Shipping 24/48H
Warranty	2 years warranty
Color	White
Tecnologia Radio	Jeweller
Detection distance	Fino a 12mt
Operating temperature	-25°+50°C
Waterproof	IP20
