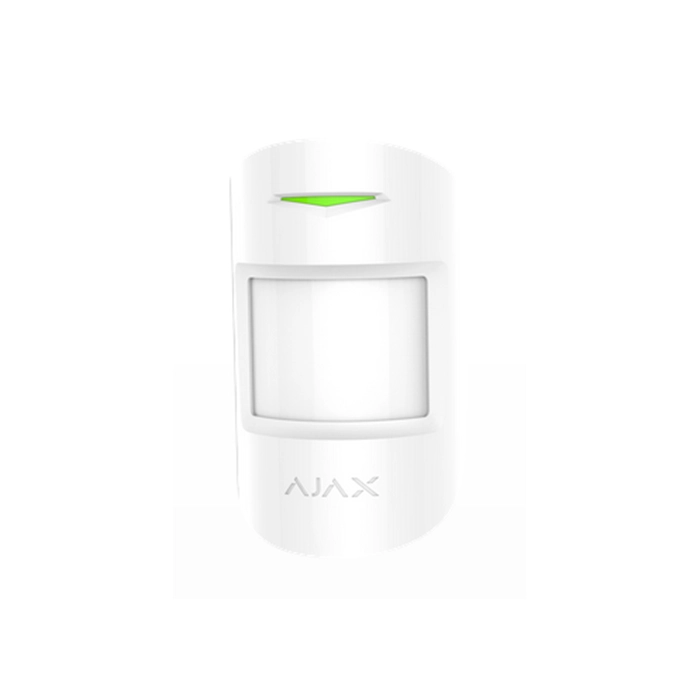

AJAX MotionProtect Plus AJMPP Double technology volumetric detector wireless 868MHz pet immune white color

Name: AJAX MotionProtect Plus AJMPP Double technology volumetric detector wireless 868MHz pet immune white color
SKU: 38198
Price: 60.75 EUR
Availability: InStock

(1)

In stock

SKU: 38198

qty: 54

Shipping expected from Monday 07 April to Wednesday 09 April

Description

Wireless motion detector with microwave sensor. Notifies the owner at the first signs of intrusion into the home or office. Designed for rooms with air conditioning or fireplaces and where there is likely to be sparks, glare and reflections. The additional microwave sensor filters out possible interference caused by the air conditioner and the movement of the curtains. The device works for up to 5 years without needing to replace the battery. Ignores the movement of pets up to 20 kg and with a maximum height of 50 cm.

Operation
It detects human presence based on the difference in temperature compared to the background thermal radiation. The microwave sensor prevents false alarms caused by complex interference.

Characteristics
Designed to be used in rooms with fireplaces and air conditioning. Detects and ignores drafts, movement of curtains and shutters, sparkles of light, glare and reflections.

Installation and configuration
Immediately ready for use. The battery is already installed inside, there is no need to disassemble the detector. Sets up in minutes using the SmartBracket mount.

Data sheet

Sensor element	PIR and microwave sensor
Motion detection distance	Up to 12 m
Motion detector viewing angles (horizontal/vertical)	88.5° / 80°
Motion detection speed	From 0.3 to 2 m/s
“Ignore pets” option	Yes, height up to 50 cm, weight up to 20 kg Why motion detectors react with animals and how to avoid it >
Anti-sabotage tamper	Yes
Frequency band	868.0 – 868.6 MHz or 868.7 – 869.2 MHz, depending on place of purchase
Compatibility	Works with Ajax hubs, signal boosters, ocBridge Plus, uartBridge
Maximum RF output power	Up to 20mW
Radio signal modulation	GFSK
Radio signal range	Up to 1,200 m (in open field)
Diet	1 CR123A battery, 3V
Battery life	Up to 5 years
Installation	Interior
Operating temperatures	From -10°С to +40°С
Operating humidity	Up to 75%
Total dimensions	110×65×50mm
Weight	96 g
Useful life	10 years
Certification	Safety grade 2, environmental class II in accordance with the requirements of the standard EN 50131-1, EN 50131-2-4, EN 50131-5-3

More Information

SKU Padre	38198.02.WH1
Ean	4823114015274
Shipping	Shipping 24/48H
Warranty	3 years warranty
Color	White
Tecnologia Radio	Wireless 868
Detection distance	Fino a 12mt
Operating temperature	-25°+50°C
Waterproof	IP20
