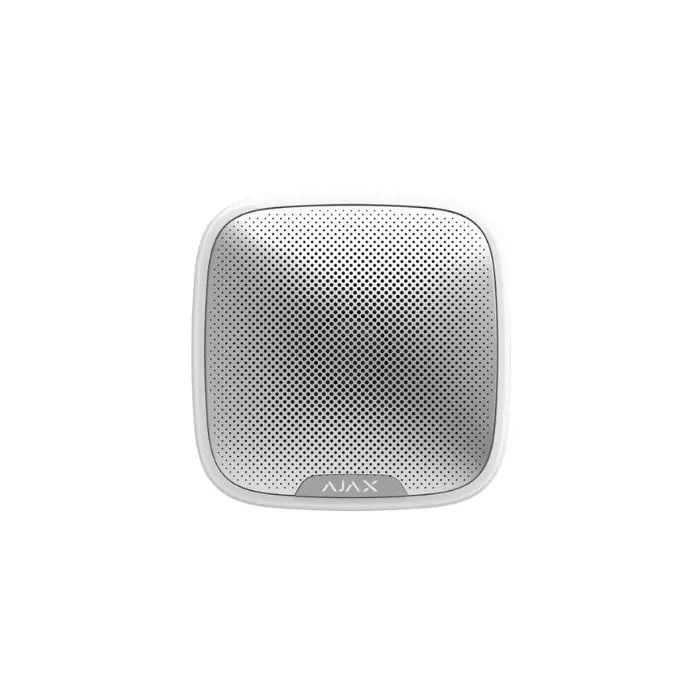

AJAX StreetSiren AJSS Wireless outdoor siren 868MHz IP54 waterproof

Name: AJAX StreetSiren AJSS Wireless outdoor siren 868MHz IP54 waterproof
SKU: 38178
Price: 81.12 EUR
Availability: InStock

(1)

In stock

SKU: 38178

qty: 128

Description

AJAX StreetSiren AJSS Wireless outdoor siren 868MHz

Wireless outdoor siren that notifies of danger using sound and light. The device is installed outside the room to raise an alarm for everyone to hear. Resistant to dust, hail and rain drops. Operates at a temperature of -25°С. Indicates armed/disarmed mode with a built-in LED.

Principle of operation
The device notifies of detector activation with an audible alarm and LED. Sound level and alarm length are set in the mobile application.

Features
The device has IP54 dust and moisture protection. 12 V DC external power supply can be connected, if necessary. The built-in accelerometer will raise the alarm if an attempt is made to remove the siren.

Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the siren. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Data sheet

Type of notification	Sound and light (LEDs)
Sound notification volume	85 dB to 113 dB at a distance of 1 m (adjustable)
Operating frequency of the piezo annunciator	3.5 ± 0.5 kHz
Protection against dismounting	Accelerometer
Frequency band	868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale
Compatibility	Operates with all Ajax hubs, and range extenders
Maximum RF output power	Up to 25 mW
Modulation of the signal	GFSK
Radio signal range	Up to 1,500 m (any obstacles absent)
Power supply	4 × CR123A, 3 V
Battery life	Up to 5 years
External supply	12 V, 1.5 A DC
Body protection level	IP54
Installation method	Indoors/outdoors
Operating temperature range	From -25°С to +50°С
Operating humidity	Up to 95%
Overall dimensions	200 × 200 × 51 mm
Weight	528 g
Service life	10 years
Certification	Security Grade 2, Environmental Class III in conformity with the requirements of EN 50131-1, EN 50131-4, EN 50131-5-3
