Bentel Security ABS104 - 104 Zones Expandable Hybrid Control Panel ABSOLUTA104

Name: Bentel Security ABS104 - 104 Zones Expandable Hybrid Control Panel ABSOLUTA104
SKU: ABS104
Price: 176.55 EUR
Availability: OutOfStock

Out of stock

SKU: ABS104

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

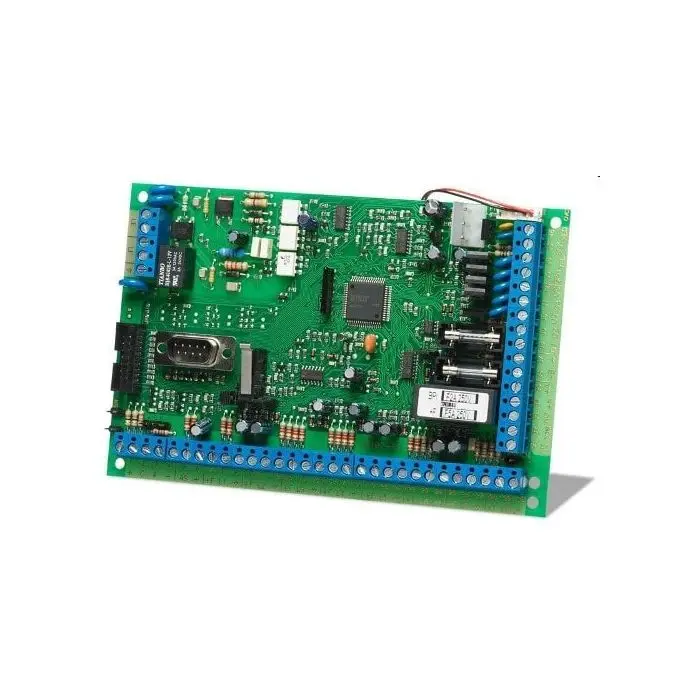

ABSOLUTA 104 - Hybrid alarm center for large installations.

Features:

Up to 8 zones on board
Expandable up to 104 entry zones
Up to 32 zones via radio
Connection to 16 LCD or LED keypads
250 keys / tags
16 partitions
Up to 6 built-in outputs expandable to 20

ABS-IP card support

The control unit can manage the optional ABS-IP card for communication with the Surgard receivers or the Boss management program.

ITV2: Protocol for system integrators

Now available ITV2, the protocol is the standard of Tyco Security Products for integrators and developers who want to integrate Absoluta into supervision and control systems.

«Smart SMS» function

The control panel can be programmed to send SMS messages for the desired events, the text will be automatically dialed adding also date and time.

Notifications of events with e-mail

With the ABS-IP card installed, it is possible to program the control panel to send e-mails using different addresses according to the category of the event.

Management of duplicate PINs

When automatic PIN generation is disabled, a user who programs his PIN could choose an existing PIN, the control panel now recognizes this condition and manages it with maximum security.

Announcements

Monostable commando zones, Menu for Ronda codes.

ABSOLUTA accessories

ABS-M : metal box; dimensions: 310x403x103 mm (without antenna); battery up to 17Ah
ABS-P : plastic box; dimensions: 319x352x92 mm (without antenna); battery up to 7Ah
M-IN / OUT : Module with 6 programmable input / output terminals
B-ISOL : Isolator module to isolate two sections of the BPI bus
BLUM03 : USB modem for remote programming of the control unit
USB5M : 5 meter USB cable for local programming of the control panel

Data sheet

Integrated voice reminder
Voice messages for each event / zone total duration: 20 minutes
Telephone voice guide
Programming up to 32 telephone numbers
Customizable digital and voice reminder
Programming via USB port with BOSS software and / or USB stick
Mini USB connector for direct connection to a PC
Quick entry keys for four partitions
Peripheral self-learning on the new BPI Plus Bus
Basic home automation functions
Totally programmable outputs: polarity, Timer, oscillation and event activation
Memory up to 2000 events
Integrated GSM connectors and additional IP cards
New powerful BOSS (Bentel Operating Security Software) management software for ABSOLUTA
ABSOLUTA unit available in metal container for industrial applications or in an elegant and versatile plastic container.
Programmer Timetable and Daily / Weekly Timer
