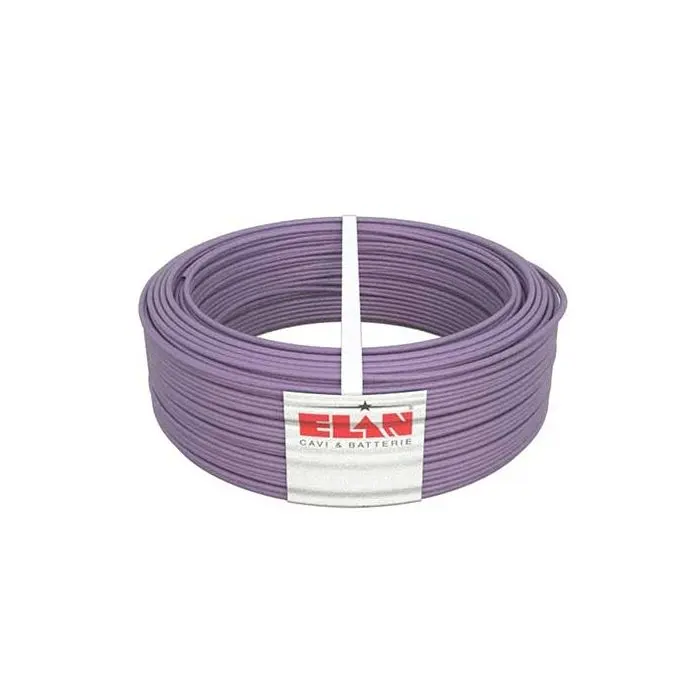

Minicoax HD Cable 1x22 AWG 75 OHM LSZH low loss for video surveillance systems purple color hank 100m Elan - sku 083591

Minicoax HD Cable 1x22 AWG 75 OHM LSZH low loss for video surveillance systems purple color hank 100m Elan - sku 083591

Name: Minicoax HD Cable 1x22 AWG 75 OHM LSZH low loss for video surveillance systems purple color hank 100m Elan - sku 083591
SKU: 083591
Price: 49.63 EUR
Availability: OutOfStock

(2)

Out of stock

SKU: 083591

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

Minicoax HD Cable 1x22 AWG 75 OHM LSZH for indoors and outdoors. Low emission of smoke and toxic gases CEI 20-37. CPR 305/11 - EN50575 compliant. Suitable for connecting analog CCTV cameras for video surveillance systems. Hank 100m, purple color.

Data sheet

Description: Minicoax HD
Center conductro: Bare copper
Construction: 1x22 AWG
Diameter: 0,644mm
Insulation: Foamed PE
Nom. Tickness: 1,10mm
Diameter (± 0,10mm): Ø 2,9mm
Shielding (1"): AL/Pol foil.
Thickness: 7/12um
Shielding (2"): TC Braid.
Construction: 112x0,11
Coverage Area: >95%

Mechanical characteristics

Operating Temperature Range: -15°C - 80°C
Max. recommended pulling tension: 240N
Min. bend radius (install): 12 x Ø
Impedence (± 5.0Ω): 75.0
Capacitance (± 5 pF/m): 53
Velocity of propagation: 82%
Screening Efficency: dB / 5-2400MHz, >16
Electrical resistance inner conduct. : 53 Ω / km
Electrical resistance outer conduct. : 16 Ω / km
Marking: ELAN HD MINI 75 OHM LSZH - CEI 36762 C-4 (Uo=400V) - PA - "data" - "mt".
