Box 1 PZ Shipping 10 days

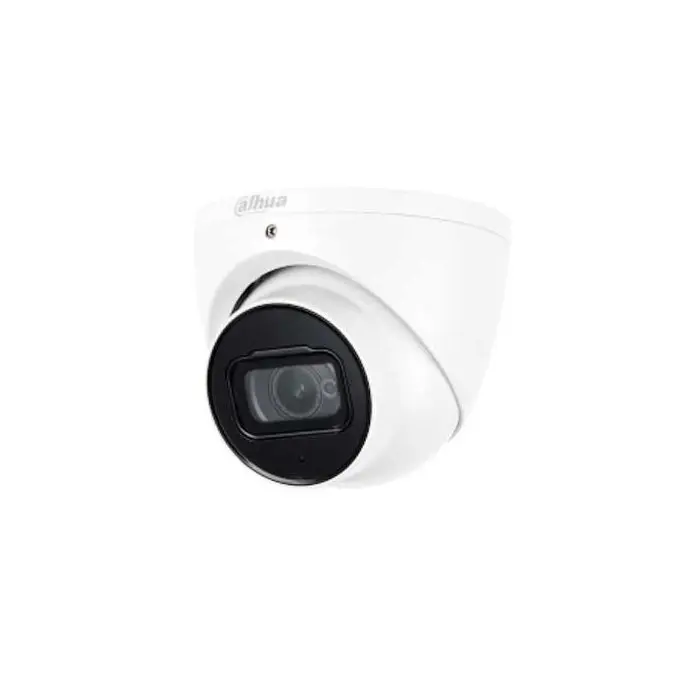

Dahua HAC-HDW1500T-Z-A-S2 dome camera hdcvi / pal uhd 2K 5Mpx motozoom 2.7~12MM osd audio IP67

Name: Dahua HAC-HDW1500T-Z-A-S2 dome camera hdcvi / pal uhd 2K 5Mpx motozoom 2.7~12MM osd audio IP67
SKU: HAC-HDW1500T-Z-A-S2
Price: 68.99 EUR
Availability: InStock

In stock

SKU: HAC-HDW1500T-Z-A-S2

This product will be shipped within 10 working days

Description

Experience superior 5MP video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers a high quality image with rich details at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.

HD/SD Switchable
The camera supports switchable HDCVI high definition video output and CVBS standard definition video output. The two formats can be switched over through OSD menu or by PFM820 (UTC controller). This feature makes the camera to be compatible with both HCVRs and existing analog DVRs and also facilitates debugging through analog testers.

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 700m for 5MP HD video via coaxial cable, and up to 300m via UTP cable.

Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.

Smart IR
The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

Main features:

1/2.7" Progressive Scan CMOS - 5.0Mpx
1-channel BNC high definition video output / CVBS video output (Can switch).
Resolution HD 2K: 20fps@5MP,25/30fps@4MP, 25/30fps@1080P
High Speed, real-time remote transmissions
OSD Functions: Day/Night(ICR), AWB, AGC, BLC, 2D-DNR, D-WDR digital.
2.7mm ~12mm motorized lens - Maximum distance IR LEDs 60m length, Smart IR technology.
Metal structure with IP67 Waterproof protection rating
Audio in interface, Built-in microphone.
DC12V power supply

Data sheet

Standard:	HD-CVI, PAL
Sensor:	1/2.7" CMOS
Matrix size:	5.0 Mpx
Resolution:	2592 × 1944 - 5Mpx (@20fps), 1920 x 1080 - 1080p (@25/30fps), 1280 x 720 - 720p(@25/30fps) , 960 x 576 - PAL
Video output:	1 Vpp 75 Ω, HD-CVI, PAL - switchable
Lens:	2.7 ... 12 mm - Motozoom
View angle:	98°~34°
S/N ratio:	> 65 dB
Range of IR illumination:	Array LED (2pcs) 60 m - 0.02Lux/F1.8 (color, 30IRE), 0Lux (IR on)Smart IR technology
IR illuminator power adjustment:	Automatic
OSD menu:	Yes
Main features:	DWDR - Digital Wide Dynamic Range 2D-DNR - Digital Noise Reduction BLC/HLC - Back Light / High Light Compensation ICR - Movable InfraRed filter Sharpness - sharper image outlines AGC - Automatic Gain Control Privacy zones Mirror - Mirror image Auto White Balance
Power supply:	12 V DC / 800 mA
Power consumption:	max. 8.2W (12V DC, IR on)
Housing:	Compact Dome, Metal
Color:	White
"Index of Protection":	IP67
Operation temp:	-40 °C ... +60°C
Weight:	0.570 kg
Dimensions:	φ122mm×104mm
Manufacturer / Brand:	DAHUA

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	3 years warranty
Connettività	Filare
Camera Resolution	5 Mpx
Lens	motorized
Camera Type	dome
Technology	HDCVI
PoC	Not
