Box 1 PZ Shipping 10 days

Dahua HAC-HDW2601T-A vandalproof dome camera hdcvi hybrid 4in1 2K 6Mpx 2.8mm smart-ir audio

Name: Dahua HAC-HDW2601T-A vandalproof dome camera hdcvi hybrid 4in1 2K 6Mpx 2.8mm smart-ir audio
SKU: HAC-HDW2601T-A
Price: 60.06 EUR
Availability: InStock

In stock

SKU: HAC-HDW2601T-A

This product will be shipped within 10 working days

Description

Experience 6 megapixel video with the simplicity of reusing existing coaxial infrastructure. The 6MP HDCVI camera presents a high quality image with rich details and accurate color rendition, and supports 120dB true WDR for a clear image in poor lighting conditions. The camera also features broadcast-quality audio to provide enhanced supplementary evidence collection. The higher resolution and complete set of features makes the 6MP HDCVI camera an ideal choice for mid to large-size businesses and projects where both highly reliable surveillance and construction flexibility are demanded.

Multiple-formats - 4IN1 Hybrid
The camera supports multiple video formats including HDCVI, CVBS, and other two common HD analog formats in the market. A DIP switch located on the cable allows you to quickly toggle formats, further simplifying installation and debugging. This feature makes the camera compatible with not only XVRs, but also most existing HD/SD DVRs.

Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.

Smart IR
The camera is designed with array LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

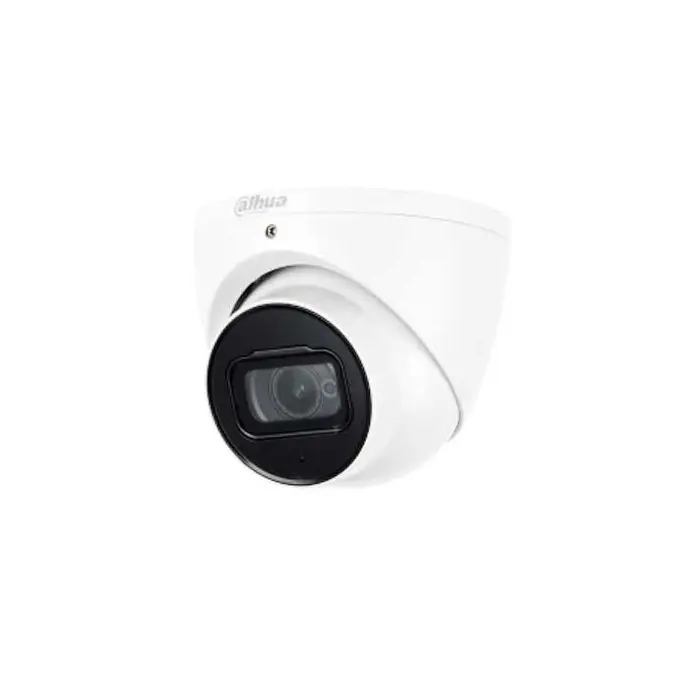

Outdoor dome camera CCTV with a white painted metal structure, resistant to atmospheric agents (Waterproof IP67). The dome shape makes the product can be installed either on the ceiling or wall surface. Technological level above average. Ideal product for applications such as video surveillance and alarm systems for indoor use; developed and designed to improve the technical standard of video surveillance in a sustainable way.

Main features:

1/2.9" Progressive Scan CMOS - 6.0Mpx
Technology HYBRID 4IN1 - (switchable via DIP-Switch) - HDCVI, HDTVI, AHD, CVBS
Ultra HD 2K: 20fps@6Mpx, 25/30fps@4Mpx.
High Speed, real-time remote transmissions
OSD Functions: Day/Night(ICR), AWB, AGC, BLC, 3/2D-DNR, Real WDR 120dB.
Optical Fixed from 2.8mm. - Maximum distance IR LEDs 50m length, Smart IR technology.
Metal structure with IP67 Waterproof protection rating
Audio input with Built-in microphone.
DC12V power supply

Data sheet

Standard:	AHD, HD-CVI, HD-TVI, PAL
Sensor:	1/2.9" CMOS
Matrix size:	6.0 Mpx
Resolution:	3096 × 2202- 6Mpx (@20fps), 2560 × 1440 - 4Mpx (@25fps), 1920 x 1080 - 1080p (@25fps), 1280 x 720 - 720p(@25fps) , 960 x 576 - PAL
Video output:	1 Vpp 75 Ω, AHD, HD-CVI, HD-TVI, PAL - switchable via DIP-Switch
Lens:	2.8 mm, F1.9
View angle:	89°
S/N ratio:	> 65 dB
Range of IR illumination:	Array LED (2pcs) 50 m - 0.01Lux/F1.9 (color, 30IRE), 0Lux (IR on)Tecnologia Smart IR
IR illuminator power adjustment:	Automatic
OSD menu:	Yes
Main features:	Audio input with Built-in microphone.Real WDR 120dB - Wide Dynamic Range 2/3D-DNR - Digital Noise Reduction BLC/HLC - Back Light / High Light Compensation ICR - Movable InfraRed filter Sharpness - sharper image outlines AGC - Automatic Gain Control Privacy zones Mirror - Mirror image Auto White Balance
Power supply:	12 V DC / 600 mA
Power consumption:	max. 7.5W (12V DC, IR on)
Housing:	Compact dome, Metal - Vandalproof IK10
Color:	White
"Index of Protection":	IP67
Operation temp:	-30 °C ... +60°C
Weight:	0.490 kg
Dimensions:	Φ106mm×99mm
Manufacturer / Brand:	DAHUA

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	3 years warranty
Connettività	Filare
Camera Resolution	6 mpx
Lens	fixed lens
Camera Type	dome
Technology	Hybrid
PoC	Not
