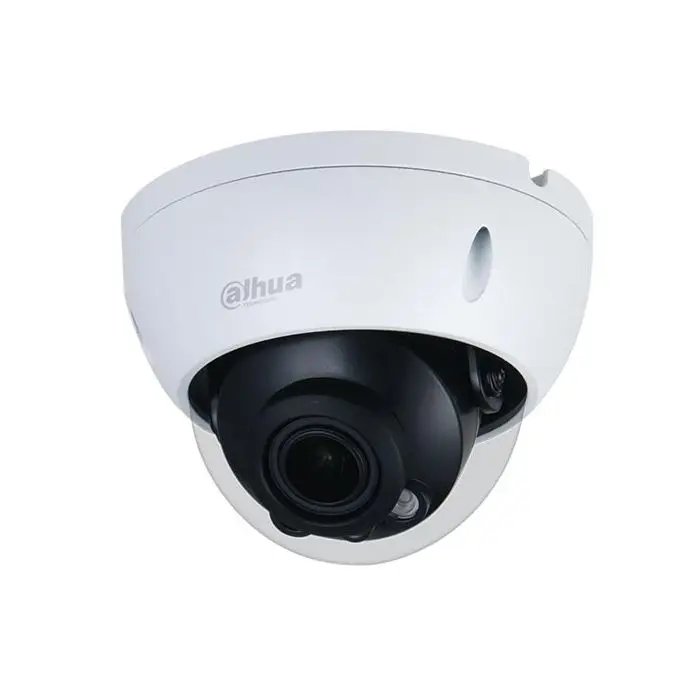

With updraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function and tamper-proof function, complying to the standards of IP67 and IK10.
Smart(H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back- light environment, bright region and dark region with strong light source, you can also get clear images.
Starlight
Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 m (Impact energy is 20J).Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Features
- 1/2.8” progressive scan CMOS 2.0 Megapixel
- Resolution - 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480);
- Video Frame Rate - Main stream: 1920 × 1080 (1 fps-25/30 fps) - Sub stream: 704 × 576 (1 fps-25fps), 704 × 480 (1 fps-30fps).
- Support H.265 / H.264 / H.264+ & MJPEG triple-stream encoding
- IVS analysis - crossing the line (tripwire), intrusion, scene changing.
- OSD functions: Real WDR 120dB, Day/Night(ICR), ROI, 3D-DNR, AWB, AGC, BLC, HLC, Mirror, Privacy Masking.
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.7mm ~13.5mm motorized lens - Max. IR LEDs Length 40m, Starlight & Smart IR technology.
- Micro SD memory - Micro SD memory cards up to 256GB support (possible local recording)
- Waterproof IP67, Vandalproof IK10, 12V DC/POE (802.3af) power support.
IVS Dahua Technology - More information click here!
Standard:
TCP/IP
Sensor:
1/2.8 " Progressive Scan CMOS
Matrix size:
2.1 Mpx
Resolution:
1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx 1280 x 720 - 720p
Lens:
2.7 ... 13.5 mm - Motozoom
View angle:
109 ° ... 28 ° (manufacturer data)
105 ° ... 29 ° (our tests result)
Range of IR illumination:
40 m
RS-485 interface:
No
Memory card slot:
Micro SD memory cards up to 256GB support (possible local recording)
Image compression method:
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Alarm inputs / outputs:
No
Audio:
No
Bitrate:
32 ... 6144 kbps @ H.264
12 ... 6144 kbps @ H.265
Network interface:
10/100 Base-T (RJ-45)
Network protocols:
, IPv4/IPv6 HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, IEEE 802.1x, Bonjour
WEB Server:
Built-in, Web Viewer
Max. number of on-line users:
20
ONVIF:
18.06
Mobile phones support:
Port no.: 37777 or access by a cloud (P2P)
Android: Darmowa aplikacja gDMSS Plus
iOS (iPhone): Darmowa aplikacja iDMSS Plus
Default admin user / password:
admin / - The administrator password should be set at the first start
Default IP address:
192.168.1.108
Web browser access ports:
80, 37777
PC client access ports:
37777
Mobile client access ports:
37777
Port ONVIF:
80
Main stream frame rate:
25 fps @ 1080p
Main features:
Motozoom lens - Controlling from browser, NVR or software
WDR - 120 dB - Wide Dynamic Range
3D-DNR - Digital Noise Reduction
ICR - Movable InfraRed filter
BLC - configurable Back Light Compensation
HLC - High Light Compensation (spot)
D-ZOOM - Digital Zoom
Day/Night mode (color/b&w/auto)
Configurable Privacy Zones
Motion Detection
IVS analysis : intrusion, crossing the line (tripwire)
Power supply:
PoE (802.3af),
12 V DC / 530 mA
Power consumption:
≤ 6.4 W
Housing:
Dome - Metal
Color:
White
Vandal-proof:
IK10
"Index of Protection":
IP67
Operation temp:
-30 °C ... 60 °C
Weight:
0.46 kg
Dimensions:
Ø 122 x 89 mm
Manufacturer / Brand:
DAHUA
