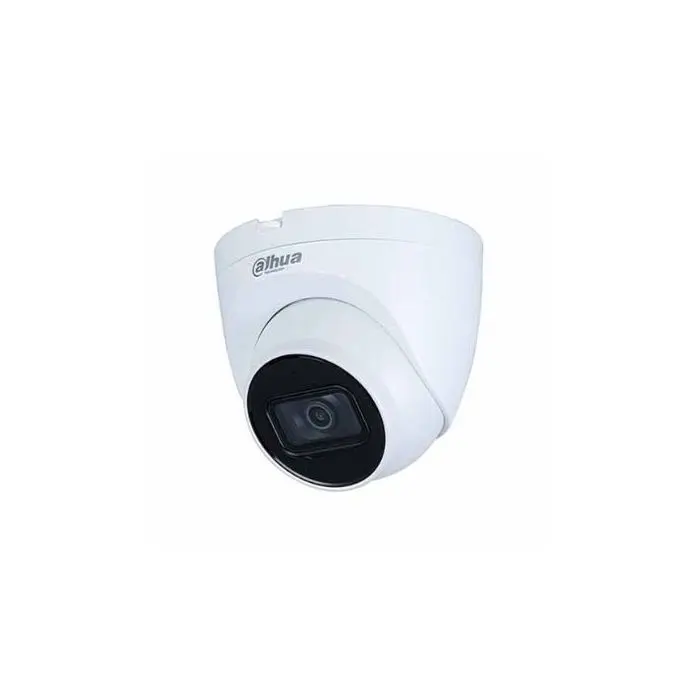

Dahua IPC-HDW2431T-AS-S2 dome IP camera 4Mpx hd+ slot sd wdr ivs starlight poe audio ip67

Name: Dahua IPC-HDW2431T-AS-S2 dome IP camera 4Mpx hd+ slot sd wdr ivs starlight poe audio ip67
SKU: IPC-HDW2431T-AS-S2
Price: 75.01 EUR
Availability: InStock

In stock

SKU: IPC-HDW2431T-AS-S2

This product will be shipped within 10 working days

Description

With upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function, complying to the standards of IP67.

Smart ( H.265+ & H.264+ )
Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher effi-ciency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back- light environment, bright region and dark region with strong light source, you can also get clear images.

Starlight
Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the envi-ronment of min. illumination, the technology can guarantee the good image effect.

Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, wide voltage)
Wateroproof IP67 the camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Features

1/3” 4.0Megapixel progressive scan CMOS
Support H.265+ / H.264+ & MJPEG dual codec
Max 20fps@4Mp(2688×1520),25/30fps@3M(2304x1296)
IVS analysis fuctions - Crossing the line (tripwire), intrusion.
OSD fuctions: Real WDR(120dB), Day/Night(ICR), ROI, 3D-DNR, AWB, AGC, BLC/HLC, Digital zoom.
Audio: Built-in Mic - Compression: G.711a/ G.711Mu/ AAC/ G.726
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8mm fixed lens - Max. IR LEDs Length 30m, Starlight & Smart IR technology.
Micro SD memory - Micro SD memory cards up to 256GB support (possible local recording)
Waterproof IP67, 12V DC/POE (802.3af) power support.

IVS Dahua Technology - More information click here!

Data sheet

Standard: TCP/IP Sensor: 1/3 " Progressive Scan CMOS Matrix size: 4.0 Mpx Scanning system: Progressive Resolution: 2688 x 1520 - 4.0 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3.0 Mpx , 1920 x 1080 - 1080p 1280 x 1024 - 1.4 Mpx 1280 x 960 - 1.3 Mpx 1280 x 720 - 720p Operation modes: Main and sub streams may be in any configuration Firmware 2.622.0000000.18.R, build : 2017-11-10 Main stream : 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720 Sub stream : 704 x 576, 640 x 480, 352 x 288 Lens: 2.8 mm - M12 / F1.6 View angle: Horizonal: 102.0° Vertical: 55.0° Diagonal: 121.0 Range of IR illumination: Array LED (2pcs) 30 m - 0.01Lux/F1.6, 30IRE, 0Lux IR onStarlight & Smart IR technology. S/N ratio: > 50 dB RS-485 interface: No Memory card slot: Micro SD memory cards up to 256GB support (possible local recording) Image compression method: H.265+ / H.264+ / MJPEG Alarm inputs / outputs: No Audio: Microphone built-in Audio Compression G.711A; G.711Mu; G.726; AAC Video Bitrate: H. 264: 32 Kbps – 6144 Kbps H.265: 12 Kbps – 6144 Kbps Main stream frame rate: 20 [email protected] Mpx 25 [email protected] Mpx Network interface: 10/100 Base-T (RJ-45) Network protocols: HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP WEB Server: Built-in Max. number of on-line users: 20 ONVIF: ONVIF (Profile S/Profile G); CGI; Milestone; Genetec Main features: WDR - 120 dB - Wide Dynamic Range ROI - improve the quality of selected parts of image 3D-DNR - Digital Noise Reduction BLC - Back Light Compensation HLC - High Light Compensation (spot) ICR - Movable InfraRed filter AGC - Automatic Gain Control Motion Detection - max. 4 zones Privacy zones - max. 4 Auto White Balance IVS analysis : crossing the line (tripwire), intrusion Abnormality detection: Motion detection, video tempering,no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection. Color: White Power supply: PoE (802.3af), 12 V DC / 350 mA Power consumption: < 5.7W (12V DC), < 6.6W (POE) Mobile phones support: Port no.: 37777 or access by a cloud (P2P) Android: Free application gDMSS Lite iOS (iPhone): Free application iDMSS Lite There are also other versions of mobile applications: gDMSS Plus, iDMSS Plus Default admin user / password: admin / - The administrator password should be set at the first start Default IP address: 192.168.1.108 Web browser access ports: 80, 37777 PC client access ports: 37777 Mobile client access ports: 37777 Port ONVIF: 80 Housing: Dome, Metal + plastic "Index of Protection": IP67 Dimensions: Ø 109.9 mm × 100.9 mm ( Φ4.33" × 3.97") Weight: 0.39 kg Supported languages: English Manufacturer / Brand: DAHUA
