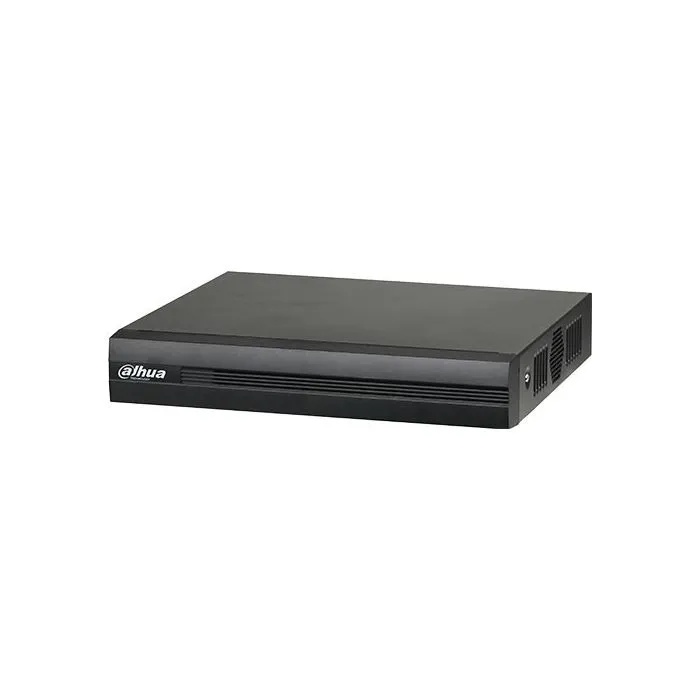

Dahua XVR1B16H-I(V2.0) Pro Series AI 1U WizSense Penta-brid 2k HD+ 16CH 5MP 5in1 P2P SMD Plus IVS AI Coding

Name: Dahua XVR1B16H-I(V2.0) Pro Series AI 1U WizSense Penta-brid 2k HD+ 16CH 5MP 5in1 P2P SMD Plus IVS AI Coding
SKU: XVR1B16H-I
Price: 128.61 EUR
Availability: InStock

In stock

SKU: XVR1B16H-I

qty: 2

Description

Dahua XVR Video Recorder sku. XVR1B16H-I Hardware Version 2.0 is a video surveillance system solution, designed to offer superior performance and excellent versatility. It supports up to 16 channels and integrates 5 technologies in 1: HDCVI, AHD, TVI, CVBS and IP. Thanks to H.265+ compression with AI Coding, it ensures efficient management of video data. Equipped with HDMI and VGA ports for high definition output up to 1080p, it also offers USB 2.0 connectivity for easy data transfer. Advanced video recording system with 16 SMD Plus channels for analog channels, which allows the device to accurately trigger for people and vehicles. The device supports 1 SATA HDD up to 16TB and 1 RCA audio input / 1 bidirectional output. It supports up to 12 IP camera inputs, each up to 6MP, and can manage up to 128 users at the same time. The input bandwidth reaches 128Mbps. Data transmission is effective even at long distances, up to 1,200 meters with 720p resolution. It is the ideal choice for those looking for a robust and advanced DVR for the control and management of complex video surveillance systems.

Data sheet

System
Main processor	Industrial grade processor
Operating system	Embedded Linux
Operational interface	Web; Local GUI
SMD Plus
SMD Plus by Recorder	16 channels: Secondary filtering for people and motor vehicles, reducing false alarms caused by leaves, rain and changes in lighting conditions
SMD Plus Camera	24 channels
Irregular black block masking
Irregular black block masking by recorder	1 channel
Audio and Video
Analog camera input	16 BNC ports, support HDCVI/AHD/TVI/CVBS auto detection
Camera input	Resolution: 5 MP at 25 fps; 5 MP at 20 fps; 5 MP at 10/12.5 fps; 4 MP at 25/30 fps; 1080p at 25/30 fps; 720p at 50/60 fps; 720p at 25/30 fps.2. TVI: 5MP at 20fps; 4 MP at 25/30 fps; 1080p at 25/30 fps; 720p at 25/30 fps.Resolution: 5 MP at 20 fps; 4 MP at 25/30 fps; 1080p at 25/30 fps; 720p at 25/30 fps.
IP camera input	Up to 24 IPC access channels8 default IP channels + 16 channels (analog channels are converted to IP channels)Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps*After adding IP channels beyond the existing ones, the AI SMD function will be disabled.
Coding skills	Mainstream:5MP Mode: 4 channels 5MP@(1fps-6fps); other 5M-N@(1fps-12fps)5M-N mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1fps–15fps); 1080N/720p/960H/D1/CIF@(1fps–25/30fps) Substream: D1/CIF@(1 fps–15 fps)
Double flow	YES
Video Bit Rate	32kbps–6144kbps
Audio Sampling	8kHz, 16bit
Audio bit rate	64kbps
Video output	1 HDMI, 1 VGA Resolution: 1920×1080, 1280×1024, 1280×720Maximum resolution: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen display	When IP extension mode is not enabled: 1/4/8/9/16When IP extension mode is enabled: 1/4/8/9/16/25
Third-party camera access	Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression standards
Video Compression	AI coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio compression	G.711a; G.711u; PCM
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Record; IP Search (Support IP Camera, DVR, NVS, etc.)
Mobile phone access	iOS; Android
Interoperability	ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK
Navigator	Chrome; Internet Explorer; Safari; Edge; Firefox
Record Playback
Registration mode	General; Alarm; Motion Detection
Record Playback	1/4/9/16
Backup method	USB Device and Network
Playback Mode	Instant playback; General playback; Event playback; Tag playback; Smart playback
Alarm
General alarm	Motion detection; HDCVI alarm; External camera alarm; Network alarm; PIR alarm
Anomaly alarm	Error (no disk, disk error, insufficient space, insufficient quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Smart Alarm	SMD Plus
Alarm connection	Recording; snapshot (overview); IPC external alarm output; audio; buzzer; log; preset; email
Ports
Audio input	1 channel RCA16-channel BNC (coaxial audio)
Audio output	1 channel RCA
Two-way conversation	Yes (share the same audio input with the first channel)
Disk Interface	1 SATA port, up to 16TB. This limit varies depending on ambient temperature.
USB	2 (2 rear USB 2.0 ports)
HDMI cable	1
VGA	1
Network port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power supply	12VDC, 2A
Energy consumption	<12W (without HDD)
Net weight	0.93 kg (2.05 lbs)
Gross weight	1.43 kg (3.16 lbs)
Product dimensions	260.0 mm × 231.4 mm × 47.6 mm (10.24" × 9.11" × 1.87") (W × W × H)
Packaging dimensions	333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)
Operating temperature	–10 °C to +45 °C (+14 °F to +113 °F)
Storage temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Operating humidity	10%–90% (RH), non-condensing
Installation	Desk
Certifications	CE: CE-LVD: EN 60950-1/IEC 60950-1CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024FCC: Part 15 Subpart B

More Information

SKU Padre	XVR1B16H-I
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	3 years warranty
SSD	No
Bit rate	128 Mbps
Channel Recorders	16
Technology	Hybrid
Recorders Resolution	5Mpx
PoC	Not
