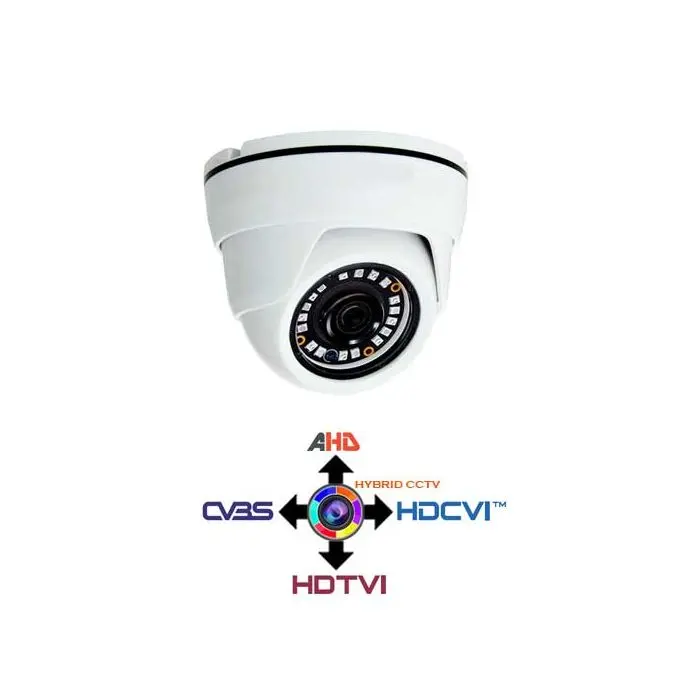

Dome Camera CCTV fixed 2.8mm 4IN1 Hybrid 1Mpx HD@720p IP20

Name: Dome Camera CCTV fixed 2.8mm 4IN1 Hybrid 1Mpx HD@720p IP20
SKU: 70CD-609
Price: 15.43 EUR
Availability: InStock

In stock

SKU: 70CD-609

qty: 3

Description

Hybrid CCTV Dome Camera Series PRO 1/4 "CMOS 1.0 megapixel REC HD @ 720p fixed lens 2.8mm with innovative Multi - Standard 4 IN 1 CCTV compatible with all new analog CCTV standards: AHD @ 720p, HD-CVI, HD -TVI, PAL (960H).

The interface AHD / HD-CVI / HD-TVI allows the transmission of the analog video signal through a coaxial cable in 720p resolution (1280x720p), recording (REC) and Live. This allows the transmission of images with a HD resolution at a distance of up to 500m maintaining low installation costs. During transmission, there is no delay and the original image quality is maintained.

The standard selection of CCTV is done by the combination of the DIP-switch (for details see additional photos). Warning: If you set the camera in PAL standard can achieve recording with a maximum resolution of 960H (960x480p).

The camera has no OSD menu. The DSP Processor automatically handles functions such as ATW, AGC and BLC. These functions allow you to compensate for all the conditions of light and exposure, improving and making the image more stable, allowing for clear shots without disorders with a high image processing capability both day and night, thanks to the mechanical filter IR- CUT (removable) installed in the camera body.

Note: Cameras Hybrid Airspace do not have UTC technology; therefore they are not compatible with the remote UTC.

external structure made of white colored plastic, are installed in interior spaces (Waterproof IP20). inner lens with 2.8mm fixed lens and infrared illuminator (Smart IR 18 LEDs) with range up to 20m. The dome shape makes the product can be installed on the ceiling or wall or surface. Model designed for analog CCTV video surveillance applications that require high resolution and without latency, while maintaining all the simple installation of simple coaxial cabling.

Data sheet

Standard: 4in1: AHD, HD-CVI, HD-TVI, PAL Sensor: 1/4” CMOS Matrix size: 1.0 Mpx Resolution: · 1280 x 720 - 720p, AHD-M, HD-CVI, HD-TVI · 960 x 576 - PAL Range of IR illumination: Smart IR 18 leds SMD, 20M IR illuminator power adjustment: Automatic Lens: 2.8 View angle: · 81 ° (manufacturer data) · 93 ° (our tests result) S/N ratio: > 50 dB Video output: 1 Vpp 75 Ω, AHD, HD-CVI, HD-TVI, PAL - selectable by DIP switch Main features: · ICR - Movable InfraRed filter · BLC - configurable Back Light Compensation · AGC - Automatic Gain Control · Auto White Balance · Sharpness - sharper image outlines OSD menu: No Vandal-proof: Yes Power supply: 12 V DC / 300 mA Housing: Dome - Plastic "Index of Protection": Indoor use - Waterproof IP20 Color: White Operation temp: -20 °C ... 50 °C Weight: 0.2 kg Dimensions: Ø90x75 mm

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	2 years warranty
Connettività	Filare
Camera Resolution	1 mpx
Lens	fixed lens
Camera Type	dome
Technology	Hybrid
