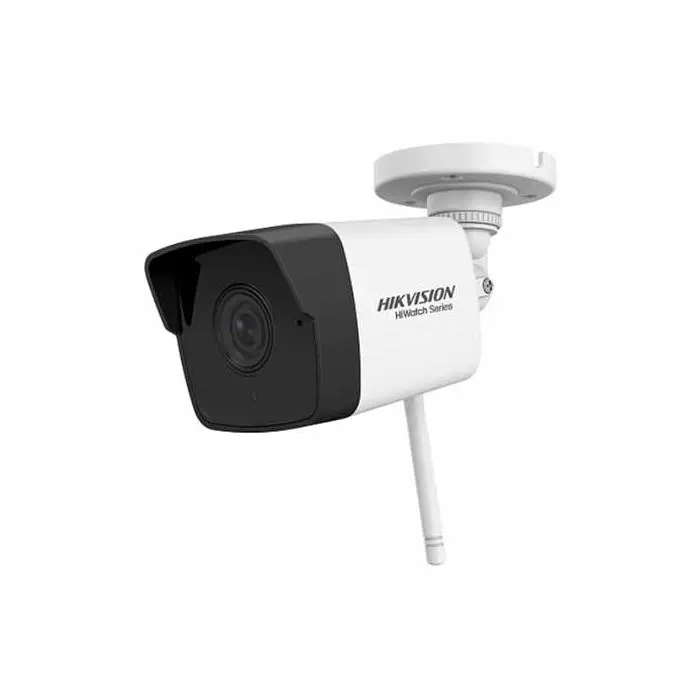

Hikvision HWI-B120-D/W Hiwatch series IP camera bullet WiFi hd 1080p 2Mpx 2.8mm h.264 audio slot sd IP66

Name: Hikvision HWI-B120-D/W Hiwatch series IP camera bullet WiFi hd 1080p 2Mpx 2.8mm h.264 audio slot sd IP66
SKU: HWI-B120H-D/W
Price: 41.13 EUR
Availability: InStock

In stock

SKU: HWI-B120H-D/W

qty: 9

Description

Hikvision Hiwatch series sku. HWI-B120-D/W IP Wifi bullet camera 1/2.8 "CMOS, maximum resolution of 2Mpx (1920 x 1080p) FULL HD, 2.8mm fixed lens viewing angle 103 °, infrared IR LED illuminator up to 30M range and integrated Wi-Fi module - IEEE 802.11 b / g / n coverage up to 50M away from the network modem. OSD menu with adjustable functions: ATW, AWB, AGC, BLC, DWDR digital, 3D-DNR, brightness, sharpness, mirror. It is very easy to use through the Internet Explorer browser and allows for convenient remote control and camera management.

The camera can be managed remotely via the app via smartphone. Easy configuration and installation of P2P network parameters - QR Code scan system with cloud service and free application "HIK-Connect" (available for Android and IOs systems). The integrated 3-Axis camera mount can be adjusted in three planes and allows you to rotate the camera in any direction. The camera meets the IP66 degree of protection.

Note: Wi-Fi connection with Hik-Connect directly is not possible.

Main characteristics

1/2.8” CMOS progressive scan 2.0 Megapixel
Wi-Fi Module - IEEE 802.11 b/g/n, Range: 50 m (open area)
Video Compression support H.264 / MJPEG
Max 25/30fps@2M(1920×1080).
OSD functions: D-WDR, Day/Night(ICR), 3D-DNR, Mirror, AWB,AGC,BLC
Multiple network monitoring: Web viewer, IVMS-4500, HIK-Connect
2.8mm fixed lens - Max. IR LEDs Length 30m
Micro SD card, up to 128GB (not included)
IP67 Index of Protection norm.
Built-in Mic

Data sheet

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Auto-Iris	No
Day &Night	IR Cut Filter
DNR	3D DNR
Wide Dynamic Range	DWDR
3-Axis Adjustment	Pan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
Lens
Focal length	2.8 mm
Aperture	F2.0
Focus	Fixed
Lens Mount	M12
IR
IR Range	Up to 30 m
Compression Standard
Video Compression	Main stream: H.264 Sub-stream: H.264, MJPEG
H.264 Type	Baseline Profile/Main Profile
Video Bit Rate	32 Kbps to 8 Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)
Max. Resolution	1920 × 1080
Main Stream Max. Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720)
Sub Stream Max. Frame Rate	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch	Day, night, auto, scheduled
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS, Bonjour
General Function	Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Audio Interface	1 Built-in mic, mono sound
Wi-Fi
Wireless Standards	IEEE 802.11b/g/n
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20 MHz/40 MHz
Protocols	802.11b: CCK, DQPSK, DBPSK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transfer Rates	11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps
Wireless Range	Up to 50 m (The performance varies based on actual environment)
General
Operating Conditions	-30 °C to +60 °C (-22°F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, 5.5 mm coaxial power plug
Current	0.4 A
Power Consumption	max. 5 W
Material	Front cover: metal, back cover: plastic
Dimensions	Camera: 99 mm × 68 mm × 66 mm (3.9" × 2.7" × 2.6") With package: 172 mm × 110 mm × 99 mm (6.8" × 4.3" × 3.9")
Weight	Camera: 272 g (0.6 lb.) With package: 517 g (1.1 lb.)
