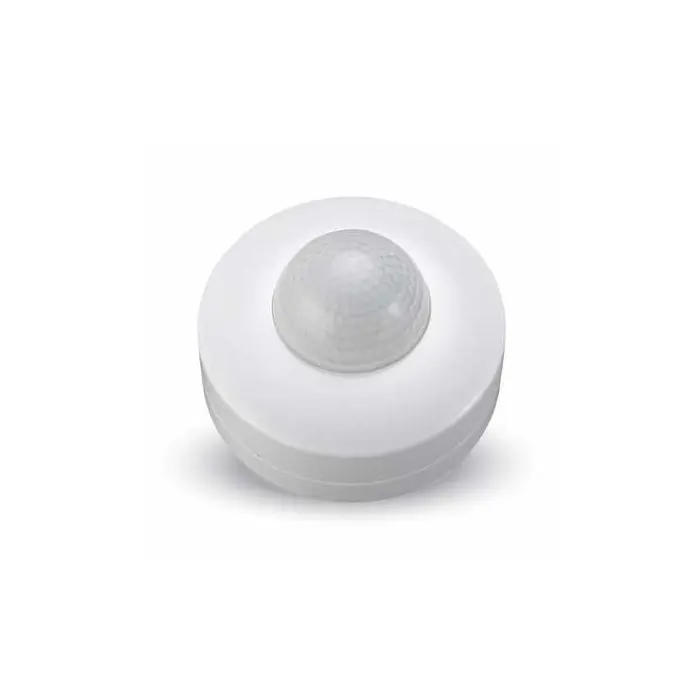

Infrared Motion Sensor V-TAC Manual Override function 360° White Ceiling Mount IP20 VT-8049 - SKU 1355

Name: Infrared Motion Sensor V-TAC Manual Override function 360° White Ceiling Mount IP20 VT-8049 - SKU 1355
SKU: 1355
Price: 9.27 EUR
Availability: InStock

(1)

In stock

SKU: 1355

qty: 12

Description

Infrared Motion Sensor V-TAC Manual Override function 360° White Ceiling Mount IP20 VT-8049 - SKU 1355

Made of white plastic material, can be installed inside (IP20). Suitable for all types of lampholders thanks to the connection via screw terminals on the back. Compatible with incandescent bulbs up to a maximum of 1200W and with LED bulbs up to a maximum of 300W. The sensor, installed at a variable height between 2,2 and 4 m, has a detection distance of 12 meters (<24 ° C) and a detection range of 360 °.

MANUAL OVERRIDE FUNCTION:
1. Automatic Sensor Override Mode - Turn the switch OFF and ON within 3 Seconds, the sensor will be overridden and switched off. The light will work continously and normally.(Make sure the automatic mode is switched ON before using this functionality)
2. Sensor Switch On - Turn the switch OFF for 20 seconds and switch it back ON. The sensor will restart and work as per the settings adjusted.
3. If the light is left idle for a longer period of time, the sensor will automatically switch back to automatic mo (Possible when the outside light reaches 100Lux)

It is possible to manually unscrew the sensor, adjust the functions (Time - LUX):

Trimmer LUX, defines the conditions of work DAY / NIGHT: When you set the symbol of the "SUN", the sensor is active throughout the day; vice versa, when you set the indicator to the symbol "LUNA", the sensor stops working during the day and turns on automatically when it gets dark;

TIME Trimmer, adjust the delay time of the sensor (from 10 seconds to 7 minutes); for delay time means that time in which the lamp stays on when a body in motion is beyond the sensing distance of the sensor PIR.

The infrared sensor is provided with a user manual (English) and wall fixing screws.
