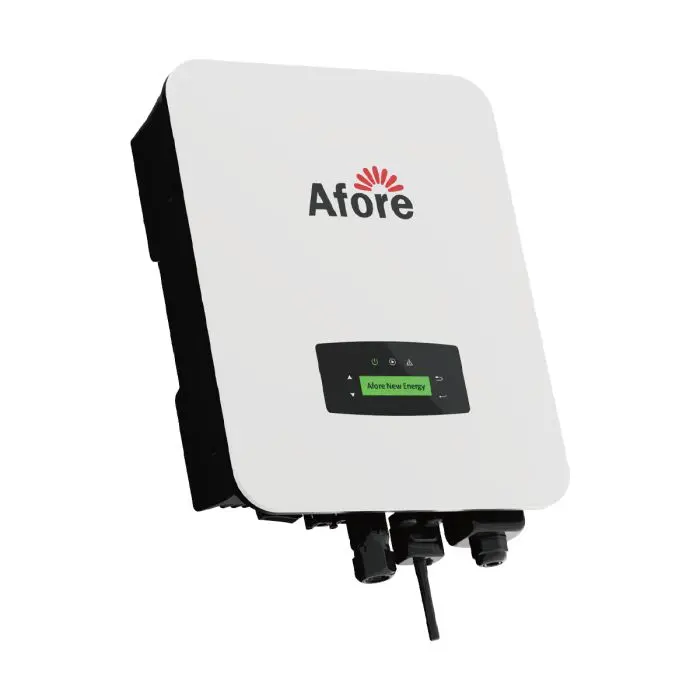

Photovoltaic Inverter Afore AF3.6K-SL Single Phase Hybrid 3.6kW, max 5.4kW solar panels WiFi and CT included 10 Year Warranty IP65 - 11955

Name: Photovoltaic Inverter Afore AF3.6K-SL Single Phase Hybrid 3.6kW, max 5.4kW solar panels WiFi and CT included 10 Year Warranty IP65 - 11955
SKU: 11955
Price: 812 EUR
Availability: InStock

In stock

SKU: 11955

qty: 1

Description

The AFORE SKU 11955 AF3.6K-SL Hybrid Inverter, 3.6kW Single Phase with double MPPT, is an advanced device designed to effectively convert the direct current produced by photovoltaic solar panels into alternating current. This inverter is particularly suitable for residential and light commercial applications.

Includes essential accessories such as the Current Transformer (CT), 2 pairs of MC4 Solar Connectors, an RJ45 Cable and a WiFi Module for remote monitoring. Equipped with an LCD Touch Screen display, it allows intuitive interaction to monitor and control various parameters of the inverter, including energy production, battery charge status, consumption and grid management. It is also equipped with an integrated Zero Emission function which allows you to prevent the export of energy to the grid.

With IP65 protection rating, it can be used outdoors, even under prolonged rain. This inverter is guaranteed for 10 years, which highlights its reliability and durability. It is certified compliant with the CEI 0-21 standard, essential for connection to the electricity grid.

Advanced features include the ability to operate both in connected and disconnected modes from the electrical grid (On-Grid and Off-Grid), allowing integration with storage batteries to optimize self-consumption of energy. It supports up to 1.5 times oversizing, offers a UPS function with a switching time of less than 10 milliseconds and allows parallel connection of up to 6 units. This versatility makes it suitable for different configurations and energy needs, including the ability to integrate with support generators for greater resilience and operational flexibility.

Battery compatibility with the AFORE Hybrid Inverter

Model	Battery Capacity	Degree of Protection
11377	5kWh	Internal Use (IP20)
11524	5kWh	External Use (IP65)
11526	5kWh	External Use (IP65)
11539	6kWh	External Use (IP65)
114483	5kWh	Internal Use (IP20)
11525	14kWh	External Use (IP65)
11548	7kWh	External Use (IP65)
11523	10kWh	External Use (IP65)
114473	10kWh	Internal Use (IP20)

Data sheet

Property Details

SKU	11955
Family Code	VT-AF3.6K-SL
Brand name	V-CT
Warranty	10 years
Degree of Protection	IP65
Dimension	370 x 535 x 192 mm
Connection interface	GPRS/WIFI/Bluetooth/4G/RS485
Power Factor (PF)	0.999
Maximum AC power	3.6 kW
Producer	Afore
Operating temperature	-25 to 60°C
Electric system	Single phase
Inverter output	230V L+N+PE
Maximum input power	5.4 kW
Maximum input voltage	550V
Minimum operating voltage	80V
MPPT voltage range	170V-500V
MPPT rated voltage	360V
Number of MPPT trackers	2
Maximum current for MPPT	18.5A
Maximum output current	17A
Network frequency	50Hz / 60Hz
Power factor	0.8 lagging ~ 0.8 leading
THDi	<3%
Maximum efficiency	97.6%
MPPT efficiency	98.1%
Communication	RS485 / CAN
Cooling down	Active
Noise	<25dB
Maximum operating altitude	4000m
Relative humidity	0-100%
Night-time energy consumption	<10W
Strings for MPPT	1/1
Starting voltage	100V
MPPT short circuit current	26A
PV input lightning protection	Integrated
Anti-islanding protection	Integrated
PV string input reverse polarity protection	Integrated
Insulation resistance detection	Integrated
Residual current monitoring unit	Integrated
Output overcurrent protection	Integrated
Output overvoltage protection	Integrated
Surge protection	Integrated
Network regulations	CEI-021,NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126
Safety regulations	IEC62109-1, IEC62109-2
EMC	EN61000-6-2, EN61000-6-3

This

More Information

SKU Padre	AF3.6K-SL
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	10 years warranty
Colore	White
Waterproof	IP65
Tipo_tensione_lvhv	Low Voltage
Power	3.6kW
Communication	RS485(standard), Wi-Fi / Bluetooth
Inverter Type	Hybrid
Current	Single phase
