CAME ATS 24V automation kit for 2-leaf swing gate max 3mt 400kg 8K01MP-024

Name: CAME ATS 24V automation kit for 2-leaf swing gate max 3mt 400kg 8K01MP-024
SKU: 8K01MP-024
Price: 630 EUR
Availability: InStock

(1)

In stock

SKU: 8K01MP-024

qty: 2

Description

ATS is the universal telescopic motor for swing gates.

It combines advanced performance with the need for refined design. Thanks to the axial transmission, the motor body does not protrude from the body, for a slender and elegant shape.

C-MAX UP TO 200 mm It can be installed in any context, even on very deep pillars.

RESISTANT AND RELIABLE Entirely made of steel and aluminum to guarantee resistance and reliability over time.

SILENT MOVEMENTS Thanks to the bevel-geared gears, ATS offers very smooth and silent movements.

ELECTRONIC LIMIT SWITCHES The gate travel is regulated by high precision electronic limit switches that can be easily adjusted at any time by acting on the two dedicated screws.

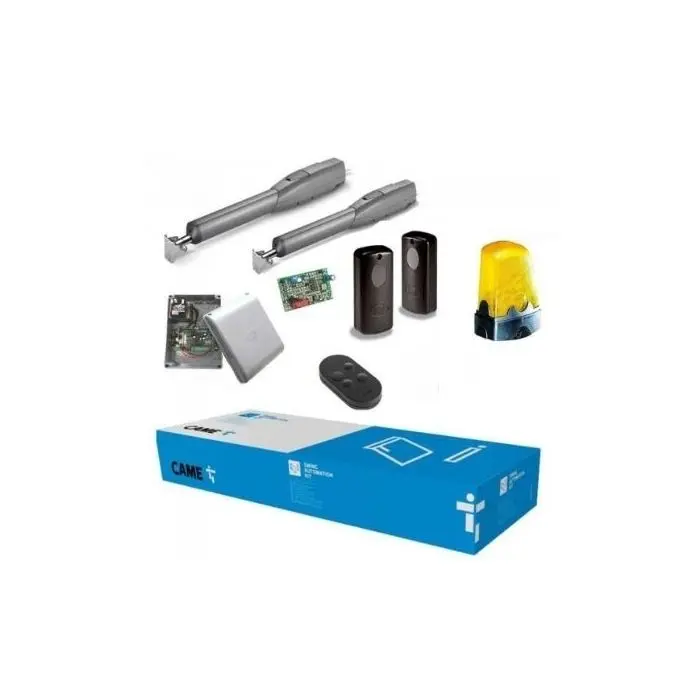

Kit contents:

Description	Amount
801MP-0070 ATS30DGS - 24 V irreversible telescopic gearmotor with encoder for swing gates with C Max. 200 mm with leaf up to 3 m and 400 kg in weight. RAL7024 gray color.	2
806TS-0121 TOPD4FKS - 4-channel transmitter	1
002ZL65 24V control panel	1
001KLED 24vV LED flashing light	1
001AF43S 433.92 mHz radio frequency card	1
001DIR10 Pair of 24 V AC-DC photocells	1

Data sheet

Degree of protection (IP): 54
Motor power supply (V): 24 DC
Absorption (A): 8 MAX
Power (W): 80
Maneuver time at 90 ° (s): 15 ÷ 30
Cycles / Hour: CONTINUOUS SERVICE
Thrust (N): 400 ÷ 3000
Operating temperature (° C): -20 ÷ +55
Motor thermal protection (° C): -

Limits of use

Max length door (m) 3 / 2.5 / 2
Max weight door (kg ) 400/600/800
Max opening door (°)

** For leaves longer than 2.5 m, it is always recommended to install an electric lock to ensure efficient closing of the gate. Installation is mandatory in the case of irreversible gearmotors.
