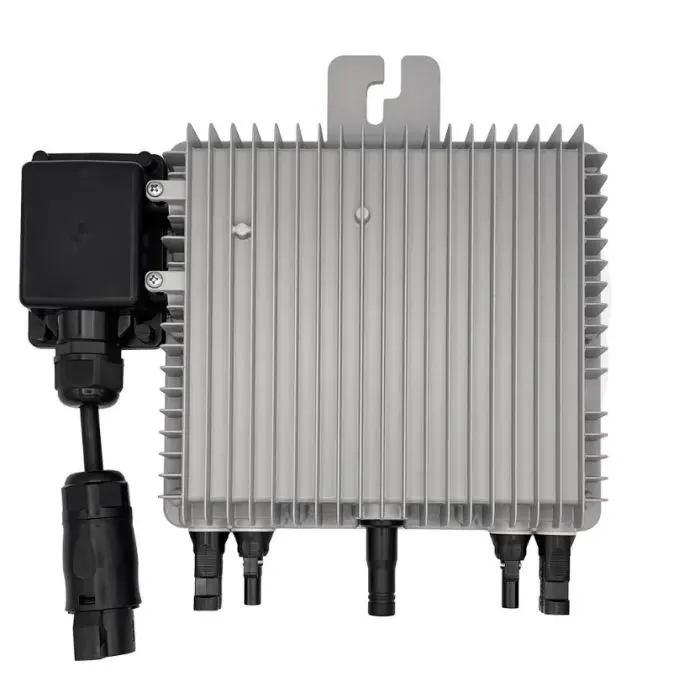

Microinverter DEYE SUN-M80G4-EU-Q0 800W plug&play for photovoltaic system inverter 230V ip67

Name: Microinverter DEYE SUN-M80G4-EU-Q0 800W plug&play for photovoltaic system inverter 230V ip67
SKU: 11949
Price: 128.7 EUR
Availability: InStock

In stock

SKU: 11949

qty: 1

Description

The Grid Microinverter SKU 11949 (SUN-M80G4-EU-Q0), 800W Dual MPPT , is an electronic device used to convert the electrical energy produced by a single photovoltaic solar panel into alternating current (AC), ready for use on the grid or in the building, with a maximum AC output power of 800W and a maximum acceptable DC input power of 1200W .

The protection grade is IP67, so it can also be used outdoors , even in prolonged rain.

The warranty on this microinverter model is 10 years .

The microinverter is a grid inverter, so it only works when connected to the electrical grid: it is NOT compatible with storage batteries, like hybrid inverters.

Compatibility
The maximum input power (photovoltaic panels) in direct current of the microinverter is 1200W (Max 600W for MPPT), therefore on each Microinverter it is possible to connect:

up to 12 x 100W solar panels, such as SKU 11568 (Flexible); or
up to 2 x 450W solar panels, such as SKU 11911.
Plug&Play Photovoltaic Panel Solution
The microinverter represents a solution defined as Plug and Play as it is placed on the back of the photovoltaic panel and then connected directly to the home electrical grid. Each panel is equipped with its own dedicated microinverter. This simplifies installation, reduces costs and improves the efficiency of the system, also allowing independent monitoring of each individual panel. Microinverters are also highly flexible and adaptable, allowing easy expansion of the system.

Remote Control App
Thanks to the integrated WiFi module, it is possible to monitor the photovoltaic system and control consumption remotely, via the Apps:

SOLARMAN Smart (Download: iOS / Android / Web App), for private and domestic use;
SOLARMAN Business (Download: iOS / Android / Web App), for Business Use, with the possibility of having a centralized view of all the systems created and issuing the end user with authorizations for access to the system.
Once logged in, to add one or more systems follow the wizard for initializing a new system, + button.
Connection
The microinverter can be connected to the home electrical grid via:

a junction box, or
an electrical panel, or
directly to the electrical socket using the special 5 metre cable with Schuko socket (SKU 11739).
The microinverter is designed to automatically synchronize with your home's electrical grid: it constantly monitors the frequency and voltage and synchronizes with them, ensuring that the energy produced by the photovoltaic panel is in phase with the grid and can be used to properly power the connected electrical devices.

Technical specifications:

Maximum AC output power: 800W
Maximum acceptable DC input power: 1200W
Degree of protection: IP67
Warranty: 10 years

Compatibility:

Maximum 12 photovoltaic panels of 100W each or up to 2 photovoltaic panels of 450W each

Plug&Play Solution for Photovoltaic Panels:

Positioning on the back of the photovoltaic panel and direct connection to the home electrical network
Each panel is equipped with a dedicated microinverter
Simplifies installation, reduces costs and improves system efficiency
Allows independent monitoring of each individual panel
Highly flexible and adaptable for easy system expansion

Remote Control Application:

Remote monitoring and control via the SOLARMAN Smart app for private/home use and SOLARMAN Business for business use
Allows a centralized view of all created systems and authorized access to the final system

Connection:

It can be connected to the home electrical network via a junction box, an electrical panel or directly to the electrical socket via a 5 metre cable with Schuko socket (SKU 11739)
It automatically synchronizes with the home electrical network to ensure the correct power supply to the connected electrical devices.

This microinverter offers a convenient, efficient and easy-to-manage solution for integrating solar panels into your home electrical system.

Data sheet

SUN-M80G4-EU-Q0 SUN-M80G4-EU-Q0

Recommended input power (W)	210-560 (2 pieces)
Maximum DC input voltage (V)	60
MPPT voltage range (V)	25-55
DC full load voltage range (V)	33-55
Maximum DC short circuit current (A)	2x19.5
Maximum input current (A)	2x13
Maximum apparent output power (VA)	800
Number of MPP trackers	2
Rated output power (W)	800
Network Connection Form	L+N+PE
Nominal Output Voltage/Range (V)	220V/184V-242V, 230V/195.5V-253V
Maximum AC output current (A)	Not specified
Power factor adjustment range	0.95 inductive - 0.95 capacitive
Nominal network frequency/range (Hz)	Sampling rate: 50Hz/45Hz-55Hz, 60Hz/55Hz-65Hz
Total Harmonic Distortion of Current (THDi)	<3%
DC component of the network	<0.5% width
Maximum units per branch	8
Maximum efficiency	96.5%
MPPT Efficiency	>99%
Nighttime power consumption (mW)	50
Degree of protection of the casing	IP67 protection grade
Communication	WIFI
Warranty	10 years

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	10 years warranty
Colore	Gray
Waterproof	IP67
Communication	Wi-Fi / Bluetooth
Inverter Type	On-grid
Current	Single phase
