Motion sensor for LED lamps IP20 Mod VT-8022

Name: Motion sensor for LED lamps IP20 Mod VT-8022
SKU: 5082
Price: 6.49 EUR
Availability: InStock

In stock

SKU: 5082

qty: 24

Description

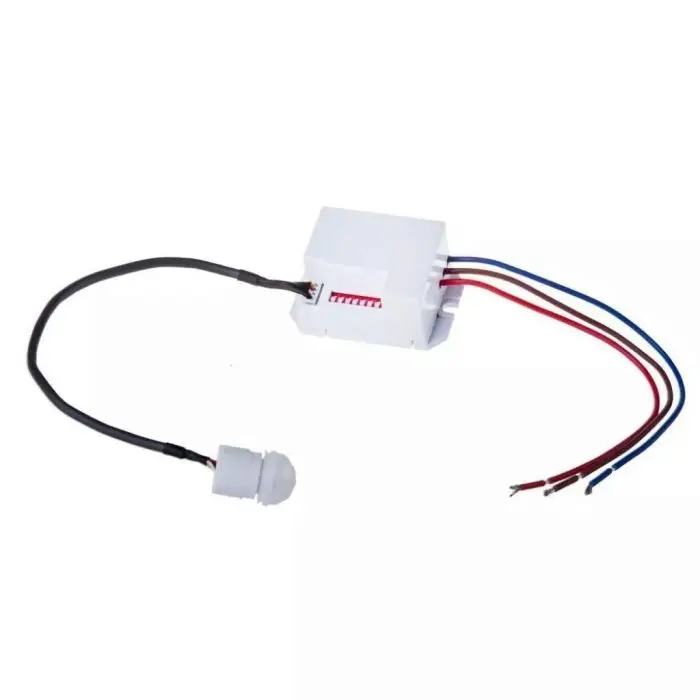

Motion sensor for LED lamps IP20 Mod. VT-8022

infrared motion sensor with a radius long distance, the detection range of 120 ° -360 °, and light sensor. Ability to adjust and change the following parameters:

On-time (minimum time 5sec. - maximum time 8 minutes.)

Sensing distance (3-6 meters),

Ambient light intensity (10 or 2000LUxX)

Detection speed (0.6-1.5 m / s)

Compatible with incandescent bulbs up to a maximum of 800W and fluorescent bulbs with LEDs and up to a maximum of 200W.

Rigid ABS plastic housing Indoor (Waterproof IP20). It equipped with sensor and control unit with cable, 200mm length, separated in order to make the visual impact minimized. Suitable for all types of lampholder thanks to the connection via screw terminals. The sensor can be installed either on the ceiling or wall.

Data sheet

Caratteristiche Tecniche Tipo di sensore: Movimento + Crepuscolare Tipo di attacco: Cavi a saldare Carico Nominale: <200W LED Alimentazione: 220-240V, 50/60Hz Campo di rilevamento: 120°-360° Distanza di rilevamento: 3-6M Grado di protezione IP: IP20 (uso interno) Dimensioni: 55 x 37 x 26 mm.. – Lunghezza cavo sensore: 200mm Materiale: Plastica rigida di colore bianco.
