Nice WINGOKIT BD 5024 - Complete automation kit for swing gates up to 3.5m 24V

Name: Nice WINGOKIT BD 5024 - Complete automation kit for swing gates up to 3.5m 24V
SKU: WINGO5024BDKCE
Price: 588.75 EUR
Availability: InStock

In stock

SKU: WINGO5024BDKCE

qty: 3

Description

Kit for the automation of swing gates with leaves up to 3.5 m, 24 Vdc, external mounting.

Reliability and silence:

patented arrangement of internal organs, reduction of moving parts.

Ease of installation: electrical connections from above, after mounting the gearmotor.

Convenient unlocking with Nice personalized key or standard lock (optional).

Pre-assembled mechanical opening limit switches .

Moonclever MC424L control unit:

built-in radio receiver;
simple, one-button programming;
clutch with anti-crush safety device;
self-learning of limit switches in opening and closing;
break time programming;
pedestrian door;
slowdown in opening and closing;
obstacle detection;
possibility of connection to the 8.2 KOhm sensitive edge;
operation in the absence of power with optional batteries (PS124) that can be inserted inside the control unit.

Nice Bidirectional products signal the status of the automations and the reception of the command.

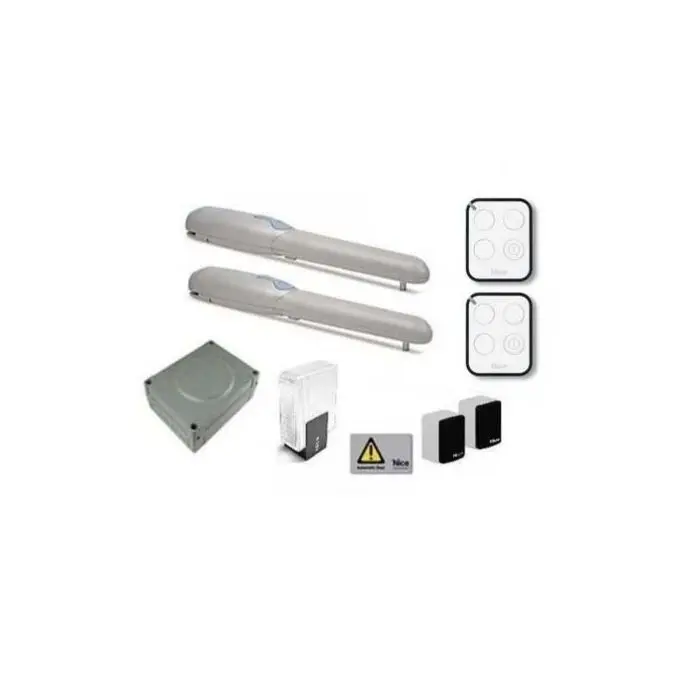

THE KIT CONTAINS

Item code	Description	Amount
WG5024	Externally mounted electromechanical gearmotors with Nice key release and mechanical limit switch during opening.	2
ONE2	433.92 MHz Transmitters	2
MC424L	Control unit with integrated radio receiver and OXIBD plug-in bidirectional radio receiver included.	1
EPM	Pair of outdoor photocells.	1
ELDC	LED flashing light with integrated antenna	1
TS	Signage table	1

Data sheet

CHARACTERISTICS

Code	WG5024
Electrical data
Power supply (Vdc)	24
Absorption (A)	3.5
Power (W)	85
Performance data
Speed (m/s)	0.016
Force (N)	1500
Duty cycle (cycles/hour)	30
Dimensional and generic data
Degree of protection (IP)	44
Operating temp. (Â°C Min/Max)	-20 ÷ +50
Dimensions (mm)	920x98x95 h
Weight (kg)	18
