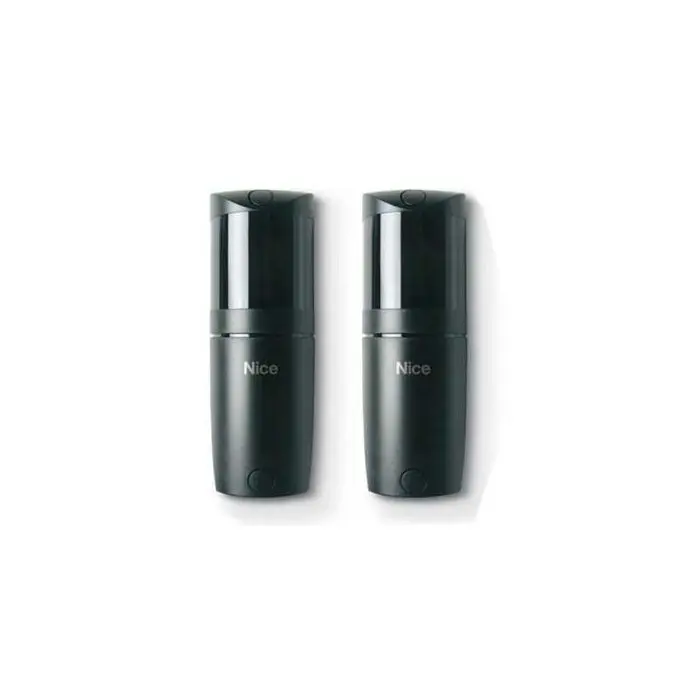

Pair Optical device adjustable with Bluebus technology FT210B

Name: Pair Optical device adjustable with Bluebus technology FT210B
SKU: FT210B
Price: 74.21 EUR
Availability: InStock

In stock

SKU: FT210B

qty: 2

Description

Pair optical devices for sensitive, with wireless transmitter to secure on moveable leaf, horizontally adjustable through 210° and 30° vertically, with Bluebus technology, for an automation according to standards. Battery kit (FTA1/FTA2) compulsory.

The safety level of the main edge, required by the EN12453 standard, can be achieved for any “type of use” and any “type of activation” by integrating a FT210/FT210B device to an 8.2 KOhm TCB65 type resistive sensitive edge. The FT210/FT210B device, integrated with a “resistive” sensitive edge (8.2 KOhm), is safe against individual faults (category 3 according to the EN 954-1 standard) or can be used with automated systems with self-diagnosis at the start of every manoeuvre (category 2 according to the EN 954-1 standard).

Additional models: Versions with relay output (FT210), with Nice BlueBUS technology (FT210B), available with 2 Ah (FTA2) and 7Ah (FTA1) battery Kit, for intensive use.

Cutting-edge technology: The anti-collision circuit avoids interference with other out-of-sink receivers.The FT210/FT210B optical devices are equipped with a special sensor capable of recognizing when the gate is motionless, which remains in a low consumption mode and activates only when the gate is in motion. Range adjustable on 2 levels; alignment with proportional LED for easy and safe installation.

Suitable for any architectural environment and easy to install

Reduced dimensions: 46x128x45; electrical connections can also be made from the lower section of the box.

Resilient and safe: Polycarbonate casing; FA1 vandal-proof metal shell(optional); low transmitter battery indicator.

Data sheet

FEATURES

Code	Estimated range (m)	Power supply	Absorption	Protection rating (IP)	Working temp. (°C Min/Max)	Range relè	Dimensions (mm)	Weight (g)
FT210	10 (residential)
