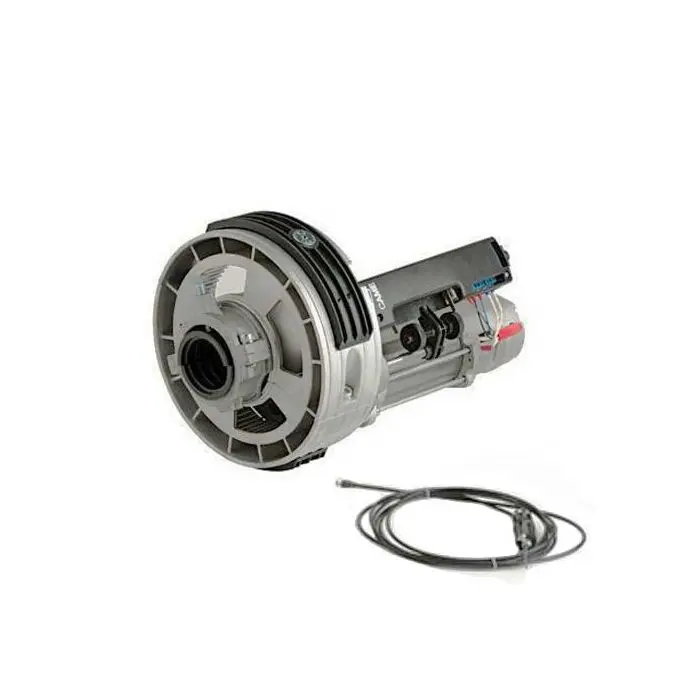

Self-locking H4 operator complete with cord and knob 180Kg

Name: Self-locking H4 operator complete with cord and knob 180Kg
SKU: 001H40230180
Price: 119 EUR
Availability: OutOfStock

Out of stock

SKU: 001H40230180

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

New Engine irreversible H4 Came complete with lanyard and shutter release knob with lifting force "180kg" Model 001H40230180

GATES The range is enriched with a new H-series engine, ideal for powering all types of rolling shutters for residential, commercial and public sectors.

H4 is the ideal solution for automating all types of rolling shutters with balancing spring 200 or 220 mm, and gate post 48 or 60 mm in diameter. Several models are available, both irreversible, and reversible, up to 180 kg (397 lb) of maximum power lifting, all with integrated limit switches adjustable by hand, without tools.

TOTAL VERSATILITY

All motors are suitable for H4 Series damper poles Ø 48 mm or Ø 60 mm. Also, the outer diameter of the motor is adaptable spring Ø 200 mm or 220 mm. Simply use the supplied accessories in series to achieve the necessary combination installation.

IN ACCORDANCE WITH THE REGULATIONS IN FORCE FOR SAFETY

The control panel, complete with radio decoder for remote control, allows you to create installations in accordance with current technical standards.

EXTERNAL CONTROL RELEASE WITH A ROPE

To unlock from the outside, is available as a handy container security 001H3001 , complete with release handle and lanyard command button (for models H40230120 and H40230180).

ELECTRONICS A 230 VOLT

Automatic code radio transmitter for easy activation of the radio control.
Connecting the accessories in order to achieve the low voltage installation in compliance with safety standards.
Commands to clean contact.
Command "non self" that requires continuous pressure on the button for the entire operation of the damper.
Electric lock for optional H001 reversible versions (H41230120 and H41230180).

Data sheet

Specifications

Model	H40230180 *
Degree of protection (IP)	40
Power supply (V - 50/60 Hz)	230 AC
Motor power supply (V - 50/60 Hz)	230 AC
Absorption (A)	2.6
Power (W)	500
Torque (Nm)	170
Lifting force (Kg)	180
Reduction ratio (i)	1/150
Intermittent / Work (%)	30
Tours crown (rpm)	10
Weight (kg / lb)	7.9 to 7.4 / 17.41 to 16.31
Operating Temperature (° C / ° F)	-20 To +55 / -4 to +131
Motor thermal protection (° C / ° F)	160/320

* Model irreversible already equipped with electric lock. The models H4123120 H4123180 reversible and can be transformed into irreversible
