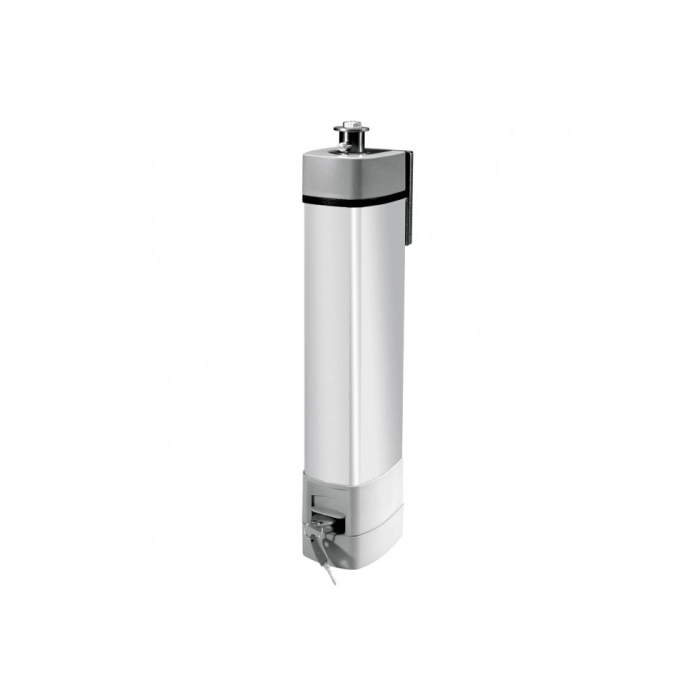

Self-locking operator with encoder for gate up to 1.8 m STYLO-ME

Name: Self-locking operator with encoder for gate up to 1.8 m STYLO-ME
SKU: 001STYLO-ME
Price: 315.37 EUR
Availability: InStock

In stock

SKU: 001STYLO-ME

qty: 4

Description

Self-locking operator with encoder for gate leaves of up to 1.8 m / 6 ft. STYLO-ME (without arm)

Narrow, compact with an exclusive design, Stylo is the new solution for small and medium size swing gates. Easy to install even on pre-existing gates or without any prior preparation, and on very narrow pillars. The best of Came technology and safety concentrated in just a few centimetres.

MAXIMUM POWER IN JUST 8 CM.
Easy to install on pre-existing or new gates, Style is ideal to automate pedestrian or driveway gates up to 1.8 m per leaf. Tested in compliance with European regulations relative to impact force, it can be installed on small and medium sized pillars, from just 10 cm wide. It is easily installed without any hidden costs, making the installer’s work easier and speeding up the issue of the Compliance Certification.

ARTICULATED OR STRAIGHT, PERFECT RESULTS (the arms are not included in the package, they can be purchased separately)

Two different types of arm are available depending on the type of application. Stylo is available with an articulated or straight “slide” transmission arm. Came suggests this alternative where there is very little space available, especially against lateral walls and fences.

Data sheet

Overall dimensions

Limits of use

TEMPLATE	STYLO-ME
Max leaf width (m)	1.8	1.2	0.8
Max door weight (Kg)	100	125	150
Max door opening (°)	120 (with Arm 001STYLO-BS) - 135 (with Arm 001STYLO-BD)

Technical information

Guy	STYLO-ME
IP protection degree	IP54
Power supply (V - 50/60 Hz)	230 AC
Motor power supply (V - 50/60 Hz)	24 DC
Absorption (A)	5 MAX
Power (W)	48
Opening time at 90 ° (s)	ADJUSTABLE
Intermittance / Work (%)	INTENSIVE SERVICE
Pair (Nm)	100
Operating temperature (° C)	-20 ÷ +55
Motor thermal protection (° C)	-

More Information

Ean	8050456017536
Shipping	Shipping 24/48H
Warranty	2 years warranty
Type of Gate	Swing gate
Technology	electromechanical
Motor type	Articulated Arm
Power supply	24v
