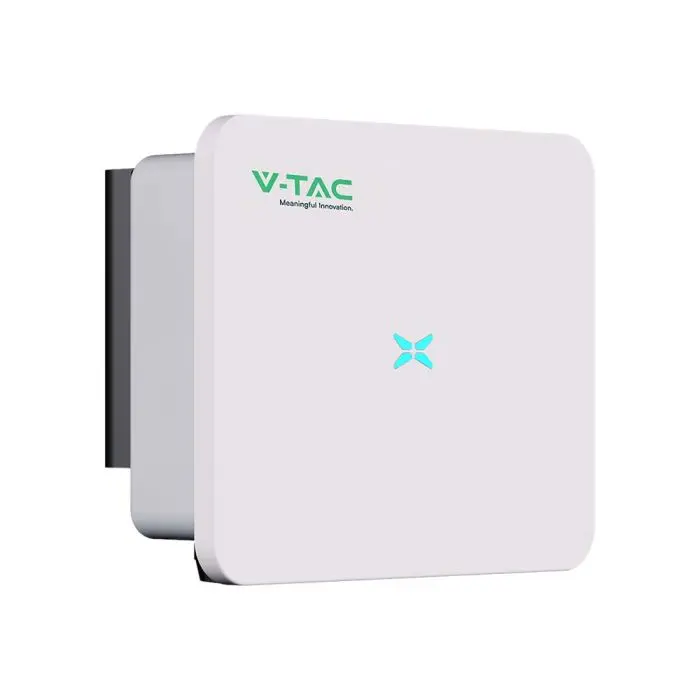

V-TAC Three-phase photovoltaic string inverter INVT On-Grid 8kW CEI 0-21 XG Series 10 Year Warranty IP66 - 11382

Name: V-TAC Three-phase photovoltaic string inverter INVT On-Grid 8kW CEI 0-21 XG Series 10 Year Warranty IP66 - 11382
SKU: 11382
Price: 1145.97 EUR
Availability: OutOfStock

Out of stock

SKU: 11382

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

The V-TAC SKU 11382 grid inverter, three-phase 8kW with dual MPPT, is an electronic device designed to convert the direct current produced by photovoltaic solar panels into three-phase alternating current. This makes the inverter ideal for powering condominiums, commercial and industrial premises.

The inverter is equipped with an LED indicator that signals the operating status (on, off or error). Heat dissipation occurs via radiators, ensuring silent operation. It is also equipped with protections for electrical charging and discharging. The IP65 protection rating also allows use in outdoor environments, including those exposed to prolonged rain.

This inverter model offers an extended 10-year warranty and is certified compliant with CEI 0-21 regulations.

It is important to note that the inverter is specifically designed to operate connected to the electricity grid and is not compatible with battery storage systems, such as hybrid inverters.

Remote Control via App: It is possible to monitor and manage the photovoltaic system remotely using the appropriate WiFi module (sold separately, SKU 11528). The available applications are:

SOLARMAN Smart (available for iOS, Android and Web App) for private and home use.
SOLARMAN Business (available for iOS, Android and Web App) for business use, allowing centralized management of multiple systems and granting access to end users.

Data sheet

Parameter Value

SKU	11382
Family Code	VT-6608310
Brand name	V-CT
Warranty	10 years
Degree of Protection	IP66
Dimension (mm)	481x395x195
Maximum AC power	8 kW
Operating Temperature	-25°C to +60°C
Electric system	Three-phase
Inverter output	230V-400V, 3L+N+PE
Maximum input power	12.8 kW
Maximum input voltage	1100V
Minimum operating voltage	180V
MPPT voltage range	180V-1000V
Number of MPPT trackers	2
Maximum current for MPPT	14A
Maximum output current	12.8A
Network frequency	50Hz / 60Hz
Power factor	0.8 leading ~ 0.8 lagging
THDi	<3%
Maximum efficiency	98.7%
MPPT efficiency	99.9%
Communication	RS485 / USB
Cooling down	Passive
Maximum operating altitude	4000m
Relative humidity	0-100%
Night-time energy consumption	<1W
Strings for MPPT	1
Starting voltage	160V

Here

More Information

SKU Padre	VT-6608310
Ean	3800157689403
Shipping	Shipping 24/48H
Warranty	10 years warranty
Colore	White
Waterproof	IP66
Power	8kW
Communication	RS485(standard), WiFi (optional)
Inverter Type	On-grid
Current	Three-phase
