V-TAC VT-138S-1 30W samsung chip led spotlight with PIR motion sensor and twilight sensor warm white 3000K 1 m cable IP65 - SKU 20286

Name: V-TAC VT-138S-1 30W samsung chip led spotlight with PIR motion sensor and twilight sensor warm white 3000K 1 m cable IP65 - SKU 20286
SKU: 20286
Price: 19.39 EUR
Availability: OutOfStock

(1)

Out of stock

SKU: 20286

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

V-TAC Ultra-thin LED Chip Samsung SMD power 30W, warm white light 3000K 2340LM (78LM/W). Equipped with PIR motion sensor + twilight light sensor, both configurable and positioned inside the LED light. Thanks to the regulation system it is possible to vary the detection distance, the intensity of the ambient light and the ignition time. The programmable functions are the following:

Trimmer LUX - defines the working conditions DAY / NIGHT: when set to the "SUN" symbol, the sensor is active all day; conversely, when you set the indicator on the "MOON" symbol, the sensor stops working during the day and starts working automatically when it gets dark;
Trimmer TIME - adjusts the sensor delay time (from 10 seconds up to 7 minutes); by delay time we mean the time in which the Floodlight stays on, when a moving body goes beyond the detection distance of the PIR sensor.
Trimmer SENS - the adjustable motion sensor detects movement within a range of 3 to 10 metres. For a range of 3 metres, adjust the lever below the sensor to the (-) symbol, to increase the range, adjust the lever to the (+) symbol.

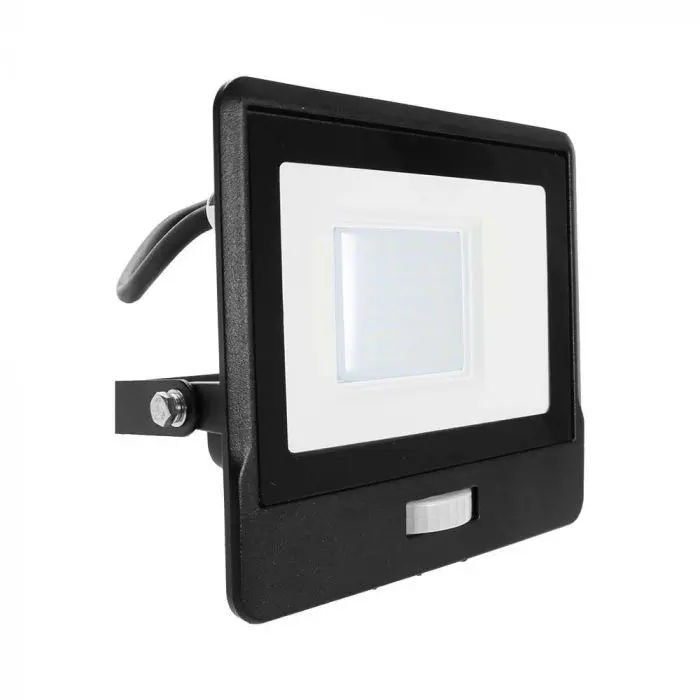

The lighthouse is made of black die-cast aluminum and a satin glass cover. Equipped with a 1 meter long pre-wired cable. It is also water resistant (IP65) and therefore can also be installed in outdoor spaces. The lighthouse comes complete with a bracket for easy wall mounting. The lights with PIR motion and twilight sensors are the perfect combination of comfort, energy saving and environmental protection. Ideal product for lighting homes, offices, shops, courtyards, gardens, terraces, etc. It is advisable to install the spotlight at a minimum height of 1.8 meters up to a maximum of 2.5 metres. This product has a 5 year warranty.

Data sheet

LED Chips: Samsung SMD LED Chips
Voltage / Frequency: AC 220-240V/50Hz
Connection: 1 meter pre-wired cable
Led technology: SMD
Power: 30W
Light colour: Warm white (3000K)
Luminous flux: 2340Lm - 78LM/W
Light beam opening: 100°
Sensor type: PIR motion & twilight.
Detection range: 140° ± 20° (adjustable).
Detection distance: 3 ~ 10 meters (adjustable).
Ignition duration: 10±3 sec ~ 7±2min (adjustable).
IP protection degree: Waterproof IP65
Average life: 25.000h
5 Years Warranty.
Dimmability: NO
Body Color: Black
Dimensions: 177x60x143mm
Material: High strength aluminum. High resistance glass (frosted cover).
Installation type: wall mounted.
Energy efficiency class: F
HP >0.90
CRI > 80

More Information

SKU Padre	VT-138S-1
Ean	3800157661447
Shipping	Shipping 24/48H
Warranty	5 years warranty
Light Color	Warm white
Color Temperature	3000k
Colore	Black
Watts	30
Led Type	SMD Samsung Chip
Smart home	Yes
Sensore Pir	yes
Waterproof	IP65
Packaging	10
Energy label	F
light beam	100°
Voltage	AC:200-240V
Lumen	2340 lm
Lighting Efficiency	80LM/W
Power factor	>0.9
Long Life/h	25000
Operating temperature	-20°+40°C
Dimensions	177 x 60 x 143 mm
