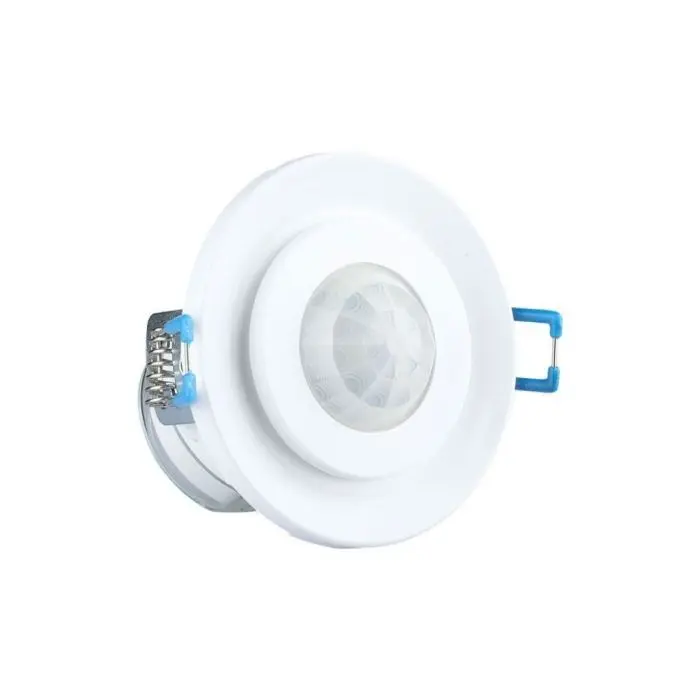

V-TAC VT-8030 PIR Infrared Motion Sensor 360° Adjustable Recessed Ceiling Adjustable 360° IP20 sku 5091

Name: V-TAC VT-8030 PIR Infrared Motion Sensor 360° Adjustable Recessed Ceiling Adjustable 360° IP20 sku 5091
SKU: 5091
Price: 7.43 EUR
Availability: InStock

In stock

SKU: 5091

qty: 10

Description

Infrared movement sensor, recessed type installation, ceiling 360° IP20 - adjustable sensor for manual management of TIMER and LUX parameters Mod. VT-8030

This device is capable of capturing invisible infrared emissions from any heat source without emitting any radiation.

The detector activates the loop output when a heat source moves in front of the switch and switches off once it stops sensing movement, after an adjustable delay time.

Adjustable Functions (Time – LUX):

LUX trimmer , defines the DAY / NIGHT working conditions: when set to the "SUN" symbol, the sensor is active all day; conversely, when you set the indicator on the "MOON" symbol, the sensor stops working during the day and starts working automatically when it gets dark;

Trimmer TIME , adjusts the sensor delay time (from 10 seconds up to 7 minutes); by delay time we mean the time in which the lamp stays on, when a moving body goes beyond the detection distance of the PIR sensor.

Elegant structure in white colour, which can be installed indoors (IP20). The sensor is complete with user manual (English).

Data sheet

Technical features Voltage: AC220-240V, 50Hz Detection range: 360° Nominal load (max power): 800W (incandescent lamp) - 400W (+ LED) Detection distance: 8m. max (<24°C) Delay time: Min. 10sec ± 3sec - Max. 15min ± 2min. (TIMER TIME) Adjustable light sensitivity 3-2000 Lux (TIMMER LUX) LED switching capacity 400W Incandescent switching capacity 800W Motion Speed Detection: 0.6 - 1.5m/s IP degree of protection: IP20 Dimensions: Dimensions: 75.6mm x 76mm x 61.5mm Mounting hole dimensions: Ø62 mm Ceiling installation height: 2.2 - 4m. Material: White hard plastic body
